101140775
Alt: AZ17-02ZRK-ST, AZ 17-02ZRK-ST
$153.00
Safety Switch, M12 Connector, 7.0 Lbs. Holding Force, Quick-Connect for AZ17, Actuator Sold Separately
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal has a wide range of safety interlock switches with separate actuators:
AZ15 Series:
- Plastic enclosure
- 52mm x 75mm x 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16 Series:
- Thermoplastic enclosure
- 52mm x 90mm 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16ZI Series:
- Above, however, coding level 'High' according to ISO 14119
AZ17 Series:
- Thermoplastic enclosure
- Small body
- 8 actuating planes
AZ17ZI Series:
- Above, however, coding level 'High' according to ISO 14119
Series Features Include (US Standard)
- With individual coding, up to 200 combinations
- Thermoplastic enclosure
- Small body
- Long life
- Double insulated X
- Including cable gland M16 (standard), Option "ST" denotes M12 connector
- Slot sealing plug included
- High level of contact reliability with low voltages and currents
- Not sensitive to dirty conditions by virtue of patented roller system
- 8 actuating planes
- Cut clamp terminals (IDC method) or connector
Need More Information?
- Schmersal AZ17-...I Series Safety Switch with Separate Actuator US Technical Specifications
- Schmersal AZ 16i / AZ 17i / AZM 161i / AZM 170i Safety Switches & Solenoid Interlocks Brochure
- Schmersal AZ 17I Safety Switch Operating Instructions
- Schmersal AZ 17 | AZM 170 Actuator Operating Instructions
- Schmersal Machine Guarding Safety Products US 12th Edition
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Schmersal
101111081
Actuator Retrofit Kit, Straight, Rigid, Ball Latch Adjustable to 100N, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Light to Medium-Weight Guards, Suited for Sliding Doors, Mounting Screws Not Included
$63.00
Schmersal
101137434

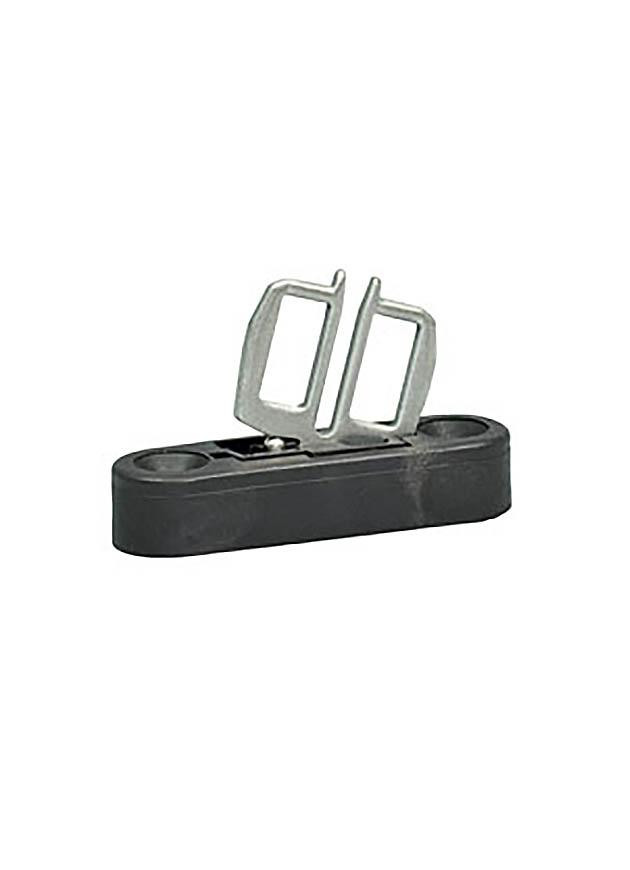

Actuator, Flexible, Adjustable to 25mm Min. Actuating Radius (38mm via Wide Edge), In Line or 90° to Actuator Plane, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Mounting Screws Not Included
