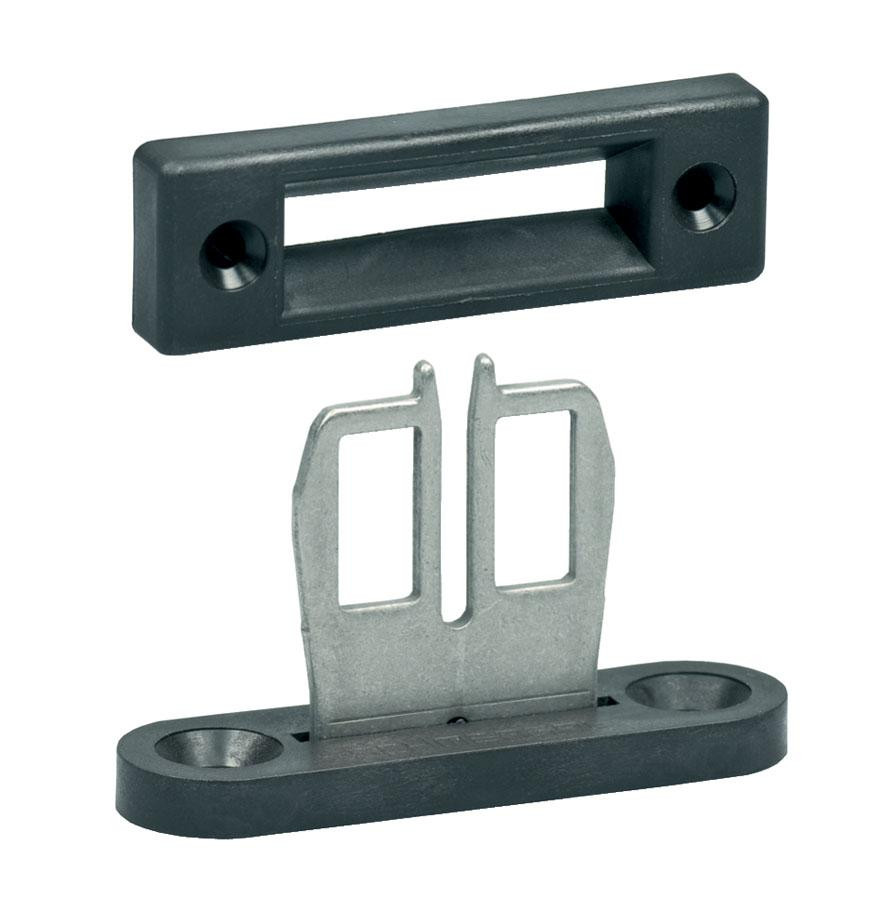

Actuator Retrofit Kit, Straight, Rigid, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, for Interlocking Light, Unguided Guards
$32.00
161133968

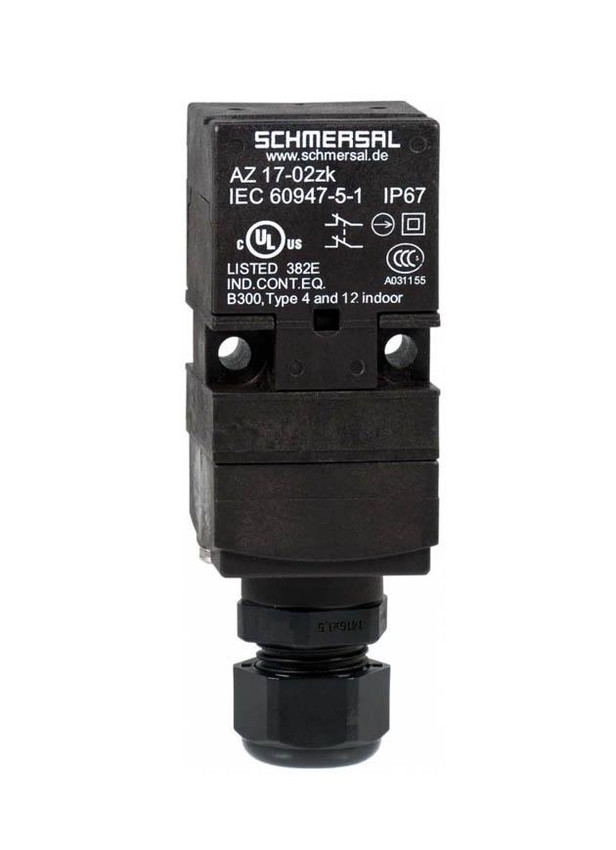

Alt: AZ17-02ZRK, AZ 17-02ZRK (Was 801000017 / 101133968)
$113.00
Safety Switch, 7.0 Lbs. Holding Force, 2NC, Standard, IP67, Needs Actuator Key
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal has a wide range of safety interlock switches with separate actuators:
AZ15 Series:
- Plastic enclosure
- 52mm x 75mm x 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16 Series:
- Thermoplastic enclosure
- 52mm x 90mm 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16ZI Series:
- Above, however, coding level 'High' according to ISO 14119
AZ17 Series:
- Thermoplastic enclosure
- Small body
- 8 actuating planes
AZ17ZI Series:
- Above, however, coding level 'High' according to ISO 14119
Series Features Include (US Standard)
- With individual coding, up to 200 combinations
- Thermoplastic enclosure
- Small body
- Long life
- Double insulated X
- Including cable gland M16 (standard), Option "ST" denotes M12 connector
- Slot sealing plug included
- High level of contact reliability with low voltages and currents
- Not sensitive to dirty conditions by virtue of patented roller system
- 8 actuating planes
- Cut clamp terminals (IDC method) or connector
