Baumer
FZAM 08P1001
Diffuse Sensor With Intensity Difference- Subminiature, < 40 mm Sensing Distance, Pulsed Infrared Diode, PNP, No Sensitivity Adjustment, 2 Meter Cable (3 Pin), IP 65
$528.49$528.49 -
Baumer
FZAM 08P1001/S35L
Diffuse Sensor With Intensity Difference-Subminiature, < 40 mm Sensing Distance, PNP, No Sensitivity Adjustment, M8 Connector (3 Pin), IP65
$510.40$510.40 -
Baumer
FZAM 08P1002
Diffuse Sensor With Intensity Difference-Subminiature, < 80 mm Sensing Distance, Pulsed Infrared Diode, PNP, No Sensitivity Adjustment, 2 Meter Cable (3 Pin), IP 65
$528.49$528.49 -
Baumer
FZAM 08P1002/S35L
Diffuse Sensor With Intensity Difference- Subminiature, < 80 mm Sensing Distance, Pulsed Infrared Diode, PNP, No Sensitivity Adjustment, M8 Connector (3 Pin), IP 65
$510.40$510.40 -
Baumer
FZAM 08P3001
Diffuse Sensor With Intensity Difference- Subminiature, < 40 mm Sensing Distance, Pulsed Infrared Diode, PNP, No Sensitivity Adjustment, IP 65
$528.49$528.49 -
Baumer
FZAM 08P3001/S35L
Diffuse Sensor With Intensity Difference-Subminiature, < 40 mm Sensing Distance, Pulsed Infrared Diode, PNP, No Sensitivity Adjustment, M8 Connector (3 Pin), IP 65
$510.40$510.40 -
Baumer
FZAM 08P3002
Diffuse Sensor With Intensity Difference-Subminiature, < 80 mm Sensing Distance, Pulsed Infrared Diode, PNP, No Sensitivity Adjustment, 2 Meter Cable (3 Pin), IP 65
$528.49$528.49 -
Baumer
FZAM 12N1104/S14
Diffuse Sensor With Intensity Difference- Miniature, 30...200 mm Sensing Range, Pulsed Infrared Diode, NPN, Potentiometer 270°, M12 Connector (4 Pin), IP65
$412.00$412.00 -
Baumer
FZAM 12N3104
Diffuse Sensor With Intensity Difference-Miniature, 30...200 mm Sensing Distance, Pulsed Infrared Diode, NPN, 270° Potentiometer, 2 Meter Cable (3 Pin), IP 65
$428.09$428.09 -
Baumer

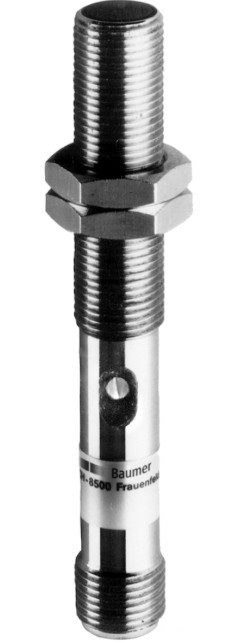

FZAM 12N3104/S14
Diffuse Sensor With Intensity Difference-Miniature, 30...200 mm Sensing Distance, Pulsed Infrared Diode, NPN, 270° Potentiometer, M12 Connector (4 Pin), IP 65
$412.00$412.00 -
Baumer
FZAM 12P1104
Diffuse Sensor With Intensity Difference-Miniature, 30...200 mm Sensing Distance, Pulsed Infrared Diode, PNP, 270° Potentiometer, 2 Meter Cable (3 Pin), IP 65
$428.09$428.09 -
Baumer
FZAM 12P1104/S14
Diffuse Sensor With Intensity Difference- Miniature, 30...200 mm Sensing Distance, Pulsed Infrared Diode, PNP, 270° Potentiometer, M12 Connector (4 Pin), IP 65
$412.00$412.00
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
