Baumer
FZAM 08P3002/S35L

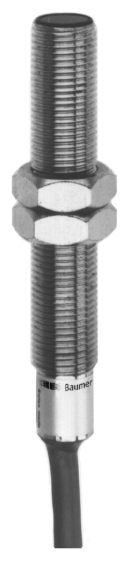

Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, M8 3-Pin Connector, Ø8 x 73mm, Nickel-Plated Brass, -25 to +65°C, IP65
$510.40
FZAM 08P3002
Alt: 10219149
$528.49
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, Ø8 x 56mm, Nickel-Plated Brass, -25 to +65°C, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer FZAM diffuse sensors detect objects by the light reflected directly back from the object surface, so no separate reflector or receiver is needed at the far side of the detection area.
Key Features
- Pulsed infrared diode light source
- Sensing distance Tw up to 200mm depending on model
- 10-30VDC supply voltage
- PNP and NPN output versions
- dark operate and light operate output function depending on model
- Adjustment by 270° potentiometer
- M8 3-Pin Connector, 2m 3-Pin Cable and M12 4-Pin Connector connection versions
- Nickel-Plated Brass housing
- Operating temperature -25 to +65°C
- IP65 protection
