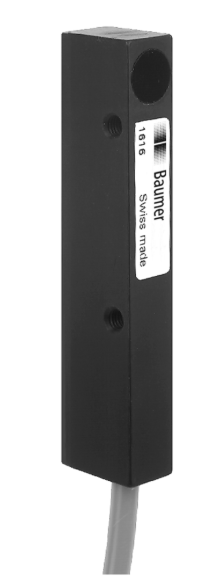

Baumer
FZDM 08P3002/S35L
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, M8 3-Pin Connector, 8 x 58 x 12mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65
$546.60
FZDM 08P3002
Alt: 10219186
$562.69
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, 8 x 58 x 12mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer FZDM diffuse sensors detect objects by the light reflected directly back from the object surface, so no separate reflector or receiver is needed at the far side of the detection area.
Key Features
- Pulsed infrared diode light source
- Sensing distance Tw up to 400mm depending on model
- 10-30VDC supply voltage
- PNP and NPN output versions
- Light operate, Light/dark operate and dark operate output function depending on model
- Adjustment by 270° potentiometer
- 2m 3-Pin Cable, 2m 4-Pin Cable, M12 4-Pin Connector and M8 3-Pin Connector connection versions
- Anodized Aluminum and Die-Cast Zinc housing depending on model
- Operating temperature -25 to +65°C
- IP65 and IP67 protection depending on model
