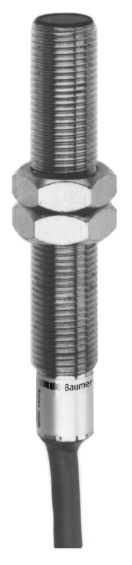

Baumer
FZAM 08P1002/S35L
Diffuse Sensor With Intensity Difference- Subminiature, < 80 mm Sensing Distance, Pulsed Infrared Diode, PNP, No Sensitivity Adjustment, M8 Connector (3 Pin), IP 65
$510.40
FZAM 08P1002
Alt: 10218694
$528.49
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Light Operate, 2m 3-Pin Cable, Ø8 x 56mm, Nickel-Plated Brass, -25 to +65°C, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer FZAM diffuse sensors detect objects by the light reflected directly back from the object surface, so no separate reflector or receiver is needed at the far side of the detection area.
Key Features
- Pulsed infrared diode light source
- Sensing distance Tw up to 200mm depending on model
- 10-30VDC supply voltage
- PNP and NPN output versions
- dark operate and light operate output function depending on model
- Adjustment by 270° potentiometer
- M8 3-Pin Connector, 2m 3-Pin Cable and M12 4-Pin Connector connection versions
- Nickel-Plated Brass housing
- Operating temperature -25 to +65°C
- IP65 protection
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
FEDM 08P1002
Thru-Beam Sensor, Receiver, 10-30VDC, 2.5m Actual Range Sb, No Adjustment, PNP, Light Operate, 2m 3-Pin Cable, 8 x 58 x 15mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65, Emitter Sold Separately
$385.80
Baumer
FEAM 08P1002
Thru-Beam Sensor, Subminiature, Receiver, Ø8mm x 59mm, 10-30VDC, 2.5m Actual Range Sb, 3m Nominal Range Sb, PNP, Light Operate, 2m 3-Pin Cable, -25 to +65°C, IP65
$385.80
Baumer
FZDM 08P1002
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Light Operate, 2m 3-Pin Cable, 8 x 58 x 12mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65
$562.69
Baumer
FZAM 18N6460
Fiber Optic Sensor, 150 mm, 800 mm, Pulsed Infrared Diode, NPN, Teach-in, 2 Meter Cable (4 Pin), IP 67
$347.00
