PM0102C
Alt: MAX-PM Series

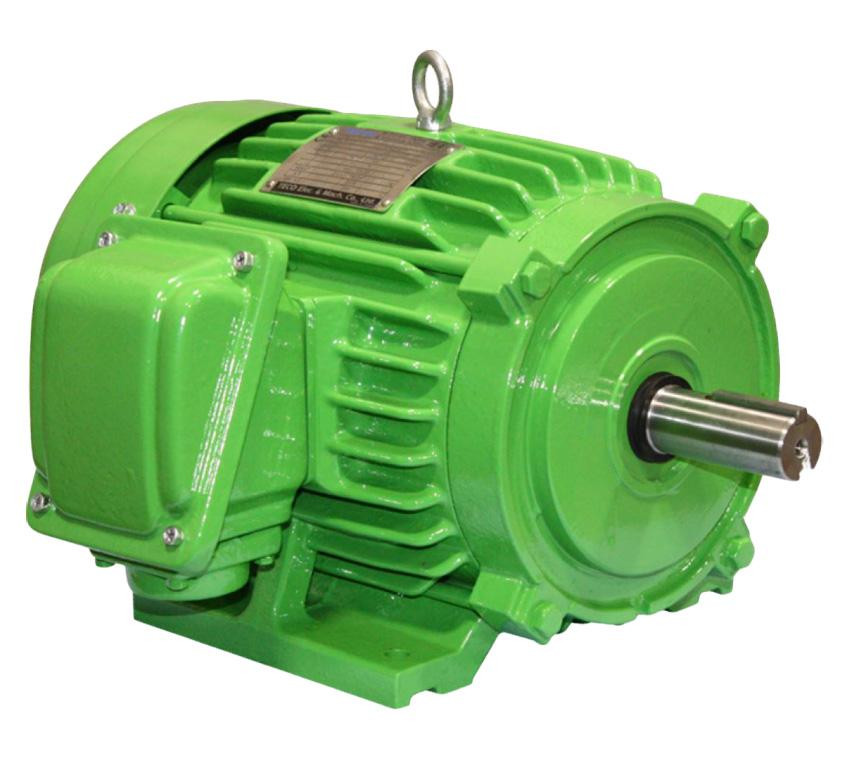

Motor, 10hp, 3600rpm, 230/460V, 215TC Frame, 91.7% FL Efficiency, 14 FL Amps (460V), 3 Phase, TEFC, Footed, IP55, Super Premium Efficiency Permanent Magnet Motors, MAX-PM™ (PMAC Motor) (Drop Ship Only Via Truck)
- Weight:
- 177.00 LBS
- Minimum Purchase:
- 1 unit
The Teco-Westinghouse MAX-PM series is an IE4 Super Premium efficiency permanent magnet AC motor line, purpose-built for applications that demand higher system efficiency than a comparable induction motor can deliver, especially at low speeds.
Key Features
- IE4 Super Premium efficiency permanent magnet synchronous design
- Significantly higher efficiency than comparable induction motors, particularly at low speed
- Faster dynamic response than induction motors due to lower rotor inertia
- Totally Enclosed Fan Cooled (TEFC) construction, IP55
- Cast iron frame and end brackets
- Class F insulation, designed for 40°C ambient temperature
- Drop-in NEMA frame footprint, lighter than an equivalent induction motor
Features Include:
- Voltage: 230/460
- Output Range: 10 HP
- RPM Rated: 3600
- Frame Size: 254TC
- Time Duty Continuous, Service Factor: 1.0 (S1)
- Protection Enclosure Totally Enclosed: (IP55)
- Mounting Horizontal Foot Mounting: F-1 (IM 1001)
- Cooling Method: Frame-Surface Cooled with a Fan (IC 411)
- Power Condition: Voltage: ±10%, Frequency: ±5%, and ±10% of Combined Voltage and Frequency, but frequency variation does not exceed ±5%
- Starting Method: Controlled by Permanent Magnet Synchronous Motor Inverter
- Direction of Rotation: Bi-Directional
- Drive Method: Direct Coupling Service
- Placement Recommendation: Shadow, Non-Hazardous
- Ambient Temperature: -20˚C~40˚C
- Relative Humidity: Less than 90% RH (Non-Condensation)
- Altitude: Less than 3,300 ft
- Frame: High Grade Cast Iron with 2 Drain Holes at Bottom
- End Bracket: High Grade Cast Iron
- External Fan: Plastic
- Fan Cover: Pressed Steel
- Shaft: Carbon Steel, Cylindrical Single Extension with Keyseat and Key
- Bearing: Grease Pre-Packed, Shielded Rolling Bearings
- Lubricant: Mineral Oil, Li-Base Grease (MULTEMP SRL)
- Shaft: Flinger V-Ring on Both Ends
- Terminal Box: Pressed Steel, Larger Size, Can be Set 90° Apart, with Clearance
- Hole: Cable Entrance, F-1 & F-2 Interchangeable
- Stator Insulation: Class F Insulation System
- Rotor Structure: Permanent Magnet NdFeB
- Painting System: Phenolic Rust Proof Base Plus Lacquer Surface Finished
- Color: Green (Munsell 10GY 5/12)
- Temperature: Rise Not to Exceed 80˚C for 1.0 Service Factor by Resistance Method
- Over Torque: 150% Rated Torque for 60 Seconds
