IDEC
FT1J-4F14KAG-S
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Source Inputs, 4 Transistor Sink Outputs, 2 Analog Outputs, Silver Bezel, IP65F/IP67F Front
$950.51
FT1J-4F14KAG-B
Alt: Replaced FT1A-C14KA-B or FT1A-M14KA-B
$950.51
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Source Inputs, 4 Transistor Sink Outputs, 2 Analog Outputs, Black Bezel, IP65F/IP67F Front
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description

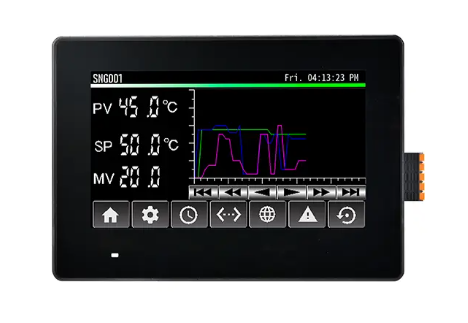

The IDEC FT1J Series combines a full-function PLC controller with a 4.3 inch PCAP touchscreen HMI in a single compact unit, reducing panel space compared to separate PLC and HMI devices. The FT1J is part of IDEC's SmartAXIS touch family and supports onboard and expandable I/O for a wide range of automation and visualization applications.
Key Features
- 4.3 inch projected capacitive (PCAP) multi-touch touchscreen, 480 x 272 resolution, 16 million colors, operable with thin gloves
- Up to 14 onboard I/O points, expandable up to 22 I/O points via up to 2 expansion cartridges
- Built-in RS232C and RS422/485 serial ports supporting Modbus RTU; built-in Ethernet port
- Relay or transistor output versions available
- High-speed counters up to 20kHz; pulse outputs up to 200kHz
- 12-bit resolution analog inputs/outputs; RTD/thermocouple input cartridge available
- Battery-free design with hyper-capacitor clock backup and MRAM non-volatile storage
- Operating temperature range of -20C to +55C
- Rated 24V DC
Certifications
- UL Type 4X, 12, 13
- IP66, IP67 (front); IP66F, IP67F (oil resistant)
Accessories
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
FT1J-4F14SAG-B
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Sink Inputs, 4 Transistor Source Outputs, 2 Analog Outputs, Black Bezel, IP65F/IP67F Front
$950.51
IDEC
FT1J-4F12RAG-B
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 12 I/O, Expandable to 20 I/O, 8 Sink Inputs, 4 Relay Outputs, Black Bezel, IP65F/IP67F Front
$831.55
IDEC
FT1J-4F12RAG-S
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 12 I/O, Expandable to 20 I/O, 8 Sink Inputs, 4 Relay Outputs, Silver Bezel, IP65F/IP67F Front
$831.55
IDEC
FT1J-4F14SAG-S
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Sink Inputs, 4 Transistor Source Outputs, 2 Analog Outputs, Silver Bezel, IP65F/IP67F Front
$950.51
