IDEC

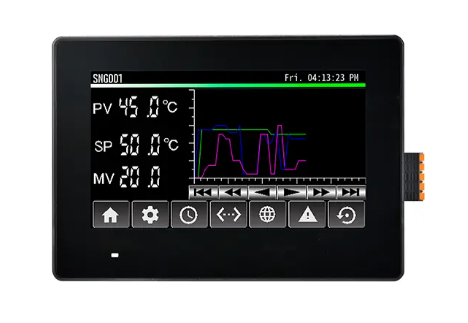

FT1J-4F12RAG-B
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 12 I/O, Expandable to 20 I/O, 8 Sink Inputs, 4 Relay Outputs, Black Bezel, IP65F/IP67F Front
$831.55

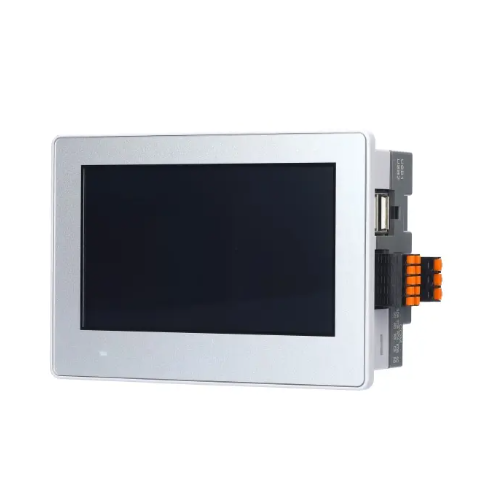

FT1J-4F12RAG-S
Alt: Replaced FT1A-C12RA-S or FT1A-M12RA-S
$831.55
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 12 I/O, Expandable to 20 I/O, 8 Sink Inputs, 4 Relay Outputs, Silver Bezel, IP65F/IP67F Front
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description
The IDEC FT1J Series combines a full-function PLC controller with a 4.3 inch PCAP touchscreen HMI in a single compact unit, reducing panel space compared to separate PLC and HMI devices. The FT1J is part of IDEC's SmartAXIS touch family and supports onboard and expandable I/O for a wide range of automation and visualization applications.
Key Features
- 4.3 inch projected capacitive (PCAP) multi-touch touchscreen, 480 x 272 resolution, 16 million colors, operable with thin gloves
- Up to 14 onboard I/O points, expandable up to 22 I/O points via up to 2 expansion cartridges
- Built-in RS232C and RS422/485 serial ports supporting Modbus RTU; built-in Ethernet port
- Relay or transistor output versions available
- High-speed counters up to 20kHz; pulse outputs up to 200kHz
- 12-bit resolution analog inputs/outputs; RTD/thermocouple input cartridge available
- Battery-free design with hyper-capacitor clock backup and MRAM non-volatile storage
- Operating temperature range of -20C to +55C
- Rated 24V DC
Certifications
- UL Type 4X, 12, 13
- IP66, IP67 (front); IP66F, IP67F (oil resistant)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
FT1J-4F14KAG-S
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Source Inputs, 4 Transistor Sink Outputs, 2 Analog Outputs, Silver Bezel, IP65F/IP67F Front
$950.51
IDEC
FT1J-4F14SAG-S
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Sink Inputs, 4 Transistor Source Outputs, 2 Analog Outputs, Silver Bezel, IP65F/IP67F Front
$950.51
IDEC
FT1J-4F14KAG-B
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Source Inputs, 4 Transistor Sink Outputs, 2 Analog Outputs, Black Bezel, IP65F/IP67F Front
$950.51
IDEC
FT1J-4F14SAG-B
PLC + HMI, IDEC FT1J, 4.3in PCAP Touchscreen, 24VDC, 14 I/O, Expandable to 22 I/O, 8 Sink Inputs, 4 Transistor Source Outputs, 2 Analog Outputs, Black Bezel, IP65F/IP67F Front
$950.51
