Baumer
FZAM 18N1150
Fiber Optic Sensor, Pulsed Infrared Diode, 10-30VDC, 270° Potentiometer, NPN, Light Operate, 2m 3-Pin Cable, Ø18 x 50mm, Nickel-Plated Brass/PC, -25 to +55°C, IP67, Fiber Optic Cable Sold Separately
$228.80

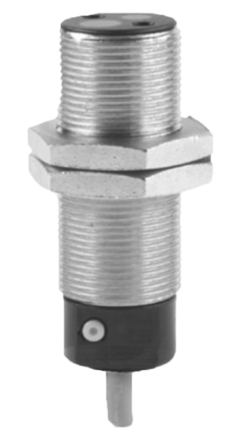

FZAM 18N1155
Alt: 10129023
$234.49
Photoelectric Diffuse Sensor with Intensity Difference, Ø18 x 50mm, 10-30VDC, 20-150mm Range Tw, 30-280mm Range Tw with Doubling Lens, 200mA, NPN, Light Operate, Nickel Plated Brass Housing, Polycarbonate Front (Optics), 2m 3-Pin cable, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor
Features Include:
- Type: Intensity difference
- Light source: Pulsed infrared diode
- Sensing distance Tw: 20 - 150 mm
- Sensing distance Tw (with doubling lense): 30 - 280 mm
- Alignment / soiled lens indicator: Flashing light indicator
- Light indicator: LED yellow
- Sensitivity adjustment: Potentiometer, 15 turn
- Wave length: 880 nm
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 45 mA, Typ.: 30 mA
- Housing type: cylindrical threaded
- Housing material: brass nickel plated / PC
- Front (optics): PC
- Connection types: cable 3 pin, 2 m
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
FZAM 08P3002
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, Ø8 x 56mm, Nickel-Plated Brass, -25 to +65°C, IP65
$528.49
Baumer
FZAM 18P1150
Fiber Optic Sensor, 150 mm, 800 mm, Pulsed Infrared Diode, PNP, 270° Potentiometer, 2 Meter Cable (3 Pin), IP 67
$228.80
Baumer
FZAM 12P1104
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 30-200mm Sensing Distance Tw, 270° Potentiometer, PNP, Light Operate, 2m 3-Pin Cable, Ø12 x 70mm, Nickel-Plated Brass, -25 to +65°C, IP65
$428.09

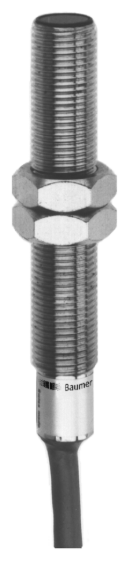

Baumer
FZAM 08P3001
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 40mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, Ø8 x 56mm, Nickel-Plated Brass, -25 to +65°C, IP65
$528.49
