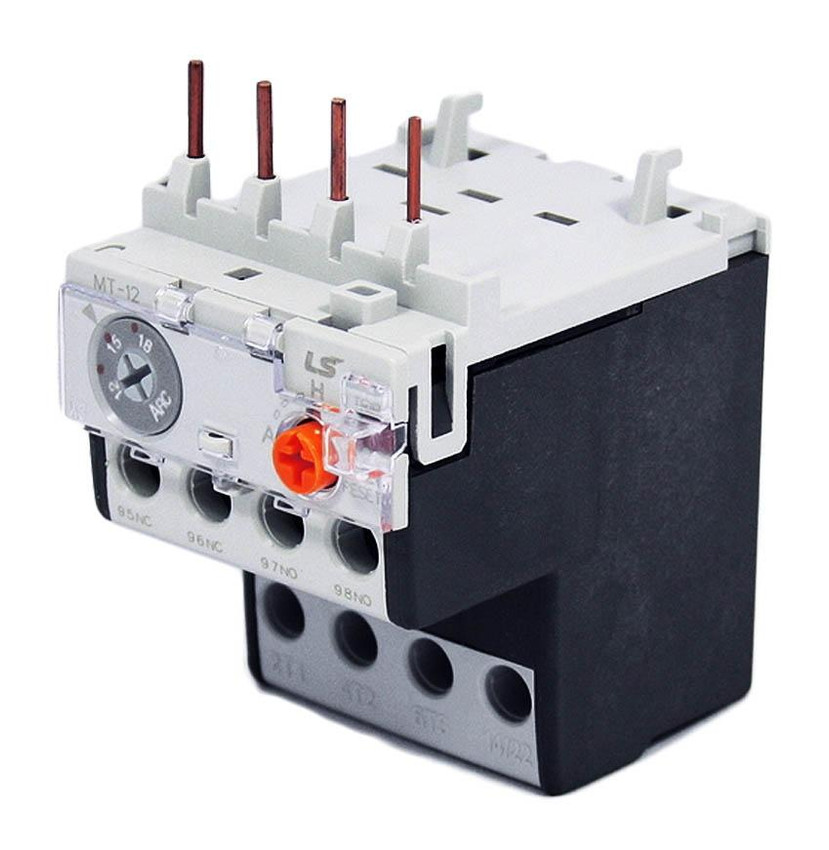

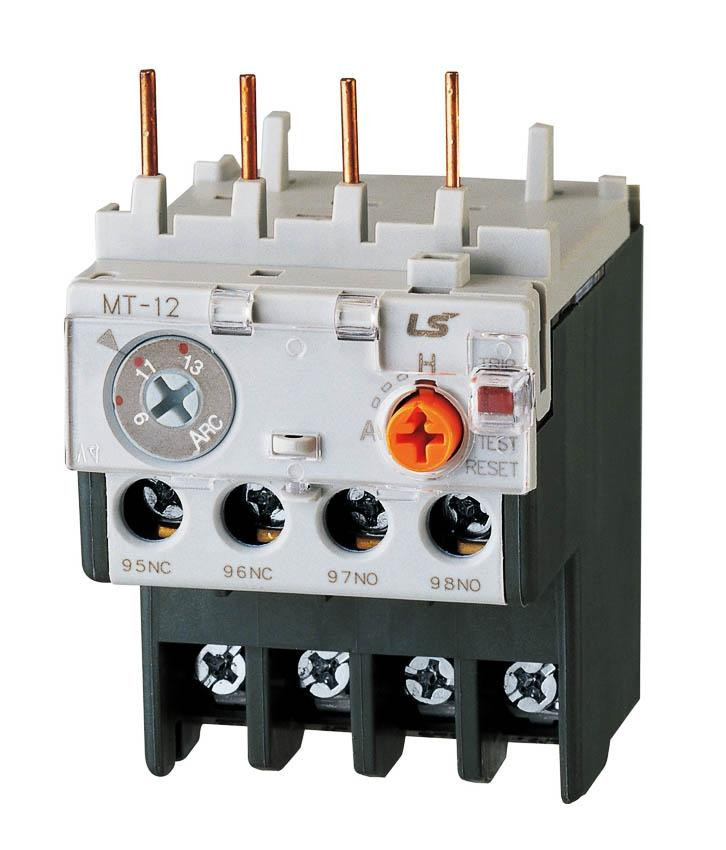

Overload Relay, MT-12 2.1A 3K, Class 10
Overload Relay, MT-12 2.1A 3K, Class 10
Overload Relay, MT-12 2.1A 3K, Class 10
LS Electric

1323000700

Alt: MT-12 2.1A 3K SCREW EXP

$30.82

Overload Relay, MT-12 2.1A 3K, Class 10, Screw Terminals

Minimum Purchase:
1 unit
Adding to cart… The item has been added
1323000700
Overload Relay, MT-12 2.1A 3K, Class 10
Overload Relay, MT-12 2.1A 3K, Class 10
Overload Relay, MT-12 2.1A 3K, Class 10
1323000700
Overload Relay, MT-12 2.1A 3K, Class 10
Overload Relay, MT-12 2.1A 3K, Class 10
Overload Relay, MT-12 2.1A 3K, Class 10
Description

LSIS's Metasol series consists of IEC contactors and overload relays that are available in 25 models in 9 frame sizes.

You can DIN rail mount (no extra tools needed), they are simple to wire, screw terminals and there are 2 built-in NO contacts.

Front/side mountable accessories available.

18AF:

  • Contactor MC-6a, 9a, 12a, 18a
  • Overload Relay MT-12

22AF

  • MC-9b, 12b, 18b, 22b
  • Overload Relay MT-32

40AF

  • MC-32a, 40a
  • Overload Relay MT-32

65AF

  • MC-50a, 65a
  • Overload Relay MT-63

100AF

  • MC-75a, 85a, 100a
  • Overload Relay MT-95

150AF

  • MC-130a, 150a
  • Overload Relay MT-150

Features Include:

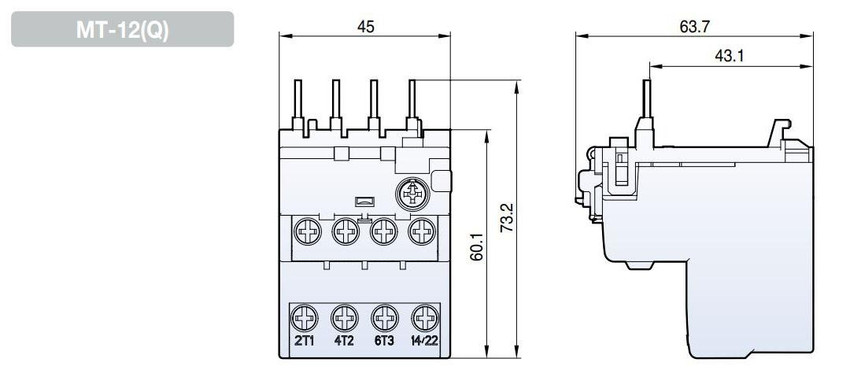

  • Size: (W x H x D) 45 x 73.2 x 63.7
  • Setting current: 0.1~18A
  • Rated operational voltage, Ue: 690V
  • Rated impulse withstand voltage, Uimp: 6kV
  • Trip class: 10A(Non-differential), 20(Class 20)
  • Combination with Manual motor starters
  • Various accessories
  • KEMA, UL/CSA, CE certified
Accessories
!
✓
