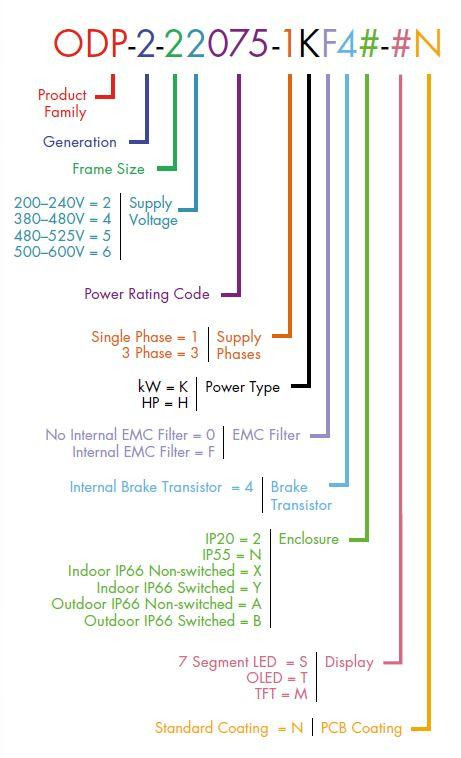

ODP-2-72075-3HF4N-MN
Alt: Latest Version of ODP-2-72075-3HF4N-TN, High Performance, 150% Overload for 60 Seconds
$10,255.34

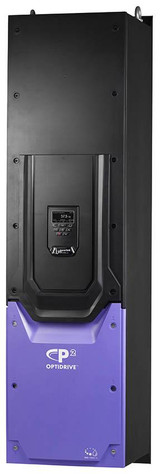

VFD, 75hp, 202A, 200-240V, 3 Phase Input/Output, Frame 7, EMC Filter, NEMA 12, IP55, High Performance AC Drive, OPTIDRIVE P2 Series, Advanced Motor Control, Includes Latest TFT Display (-MN) (Free Non-Expedited LTL Freight from IL)
- Weight:
- 263.76 LBS
- Minimum Purchase:
- 1 unit
Description
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
All P2 series 3 phase input rated drives can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.
If advanced pump features are required, the P2 series firmware can be changed to 'eco' firmware - this must be done prior to shipping, please put a note on your order that this is needed.
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
This series is available from 1 to 400 horsepower and from 200 to 600V, single or 3 phase input.
Additional features:
- 150% overload for 60 seconds
- 200% overload for 4 seconds
- Simple PLC functionality
- Built-in EMC filter
- Available in IP20, IP66 (with or without disconnect) or IP55
- Low ambient operation (-10°C)
- Modbus RTU and CANopen are standard
- Dedicated hoist mode
- Multiple control modes
This series is ideal for cranes, hoists, lifts, extruders, conveyers, pumps and mixers.
Series Features Include:
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10°C)
- Dedicated hoist mode
- Integral brake resistor
- Safe torque off
Input Ratings:
- Input Supply Voltage: 200–240V ± 10%, 380–480V ± 10%, 500–600V ± 10%
- Supply Frequency: 48-62 H
- Displacement Power Factor: > 0.98
- Phase Imbalance: 3% Maximum allowed
- Power Cycles: 120 per hour maximum, evenly spaced
Output Ratings:
- Overload Capacity: 150% for 60 Seconds
- Output Frequency: 0 – 500Hz, 0.1Hz resolution
Output Power Ratings:
- 230V 1Ph. Input: 0.75–2.2kW (1–3HP)
- 230V 3Ph. Input: 0.75–75kW (1–100HP)
- 400V 3Ph. Input: 0.75–250kW
- 460V 3Ph. Input: 1–350HP
- 575V 3Ph. Input: 0.75–110kW (1–150HP)
Programming:
- Keypad: Built-in keypad as standard, optional remote mountable keypad
- Display: Built-in multi language text display (IP55 & IP66), 7 Segment LED (IP20)
Control Methods:
- V/F Voltage Vector
- Energy Optimized V/F
- 3GV Sensorless Vector Speed Control
- 3GV Sensorless Vector Torque Control
- Closed Loop (Encoder) Speed Control
- Closed Loop (Encoder) Torque Control
- PM Vector Control
- BLDC Control
- Synchronous Reluctance
Technical Information:
- Invertek Optidrive P2 High Performance Drive Brochure
- Invertek Stock Drives Catalog
- Invertek Optidrive P2 High Performance Drive User Guide
- Invertek Marine Equipment Control Catalog
Options and Communication Cards:
- Invertek Optiport 2 Remote Keypad Option Module User Guide
- Invertek Optidrive OLED Remote Keypad Option Module User Guide
- Invertek OPTISTICK User Guide
- Invertek RJ45 Port Expansion Module User Guide
- Invertek USB-485 Converter User Guide
- Invertek External EMC Filters User Guide
- Invertek Optidrive HVAC Cascade Expansion Module User Guide
- Invertek DeviceNet Interface User Guide
- Invertek Profibus DP Interface User Guide
- Invertek EtherNet IP Interface User Guide
- Invertek EtherCAT Interface User Guide
- Invertek PROFINET IO Interface User Guide
- Invertek Optidrive P2 / HVAC Extended I/O Module User Guide
- Invertek Optidrive P2 Encoder Interface Modules User Guide
- Invertek Modbus TCP Interface User Guide
- Invertek Input Line Chokes for Optidrives Installation Guide / IP20 & IP66
- Invertek Output Filters (Chokes) for Optidrives Installation Guide / IP20 & IP66
- Invertek Optidrive P2 Isolator Option Installation Guide
- Invertek Input Optidrive P2 Encoder Interface Modules User Guide
- Invertek Optidrive HVAC BACnet User Guide
- Invertek IP66 Sun Shade Installation Guide
