Menics
MPLN-Z02-3L

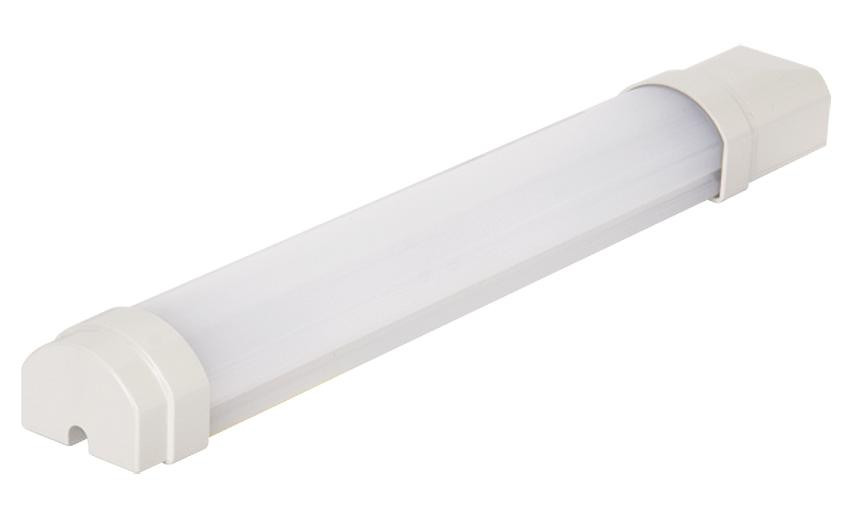

LED Panel Light Bar, Natural White, 300mm, Terminal Block with Power Switch, 24VDC, Wide Angle High Illumination, Easy Installation Fixing Slide Rail Bracket with Screws
$62.26
MPLN-Z02-4L
Alt: MPL Series
$75.26
LED Panel Light Bar, Natural White, 400mm, Terminal Block with Power Switch, 24VDC, Wide Angle High Illumination, Easy Installation Fixing Slide Rail Bracket with Screws
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Application: Working light, Enclosure box, Semiconductor machinery
- Power supply: 24VDC
- Type: Z-type, Terminal block + Built-in ON/OFF switch type
- Light Color: Natural White
- Strip Length: 400mm
- Connection: 60227 KS IEC 53, 2CX0.7-Exposure length: 400mm
- Material: Housing-PC resin (milky white), Cover-ABS resin(ivory),
- Bracket: - PC resin (transparent)
- Withstand voltage AC: 1500VAC 60Hz for 1 minute / DC: 500VAC 60Hz for 1 minute
- Insulation resistance: 100MΩ or more (500VDC Mega between all terminals and case)
- Vibration 10~55Hz (cycle 1 minute): Amplitude 0.75mm X, Y, Z 1hour
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Menics
MPLN-Z02-5L
LED Panel Light Bar, Natural White, 500mm, Terminal Block with Power Switch, 24VDC, Wide Angle High Illumination, Easy Installation Fixing Slide Rail Bracket with Screws
$91.83
Menics
MPLN-Z02-2L
LED Panel Light Bar, Natural White, 200mm, Terminal Block with Power Switch, 24VDC, Wide Angle High Illumination, Easy Installation Fixing Slide Rail Bracket with Screws
$55.78
Menics
MPLN-T20-4L
LED Panel Light Bar, Natural White, 400mm, Terminal Block, 220VAC, Wide Angle High Illumination, Easy Installation Fixing Slide Rail Bracket with Screws
$54.43
Menics
MPLN-T02-4L
LED Panel Light Bar, Natural White, 400mm, Terminal Block, 24VDC, Wide Angle High Illumination, Easy Installation Fixing Slide Rail Bracket with Screws
$54.43
