$9.53
CP3004/8
$32,725.08

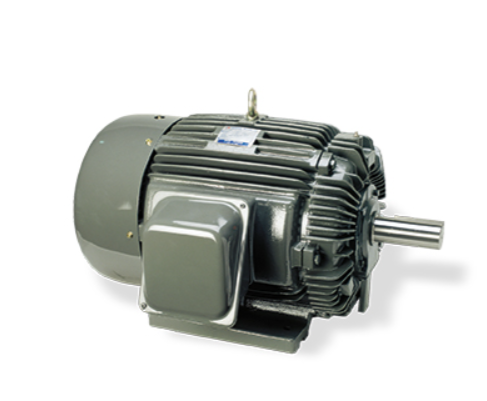

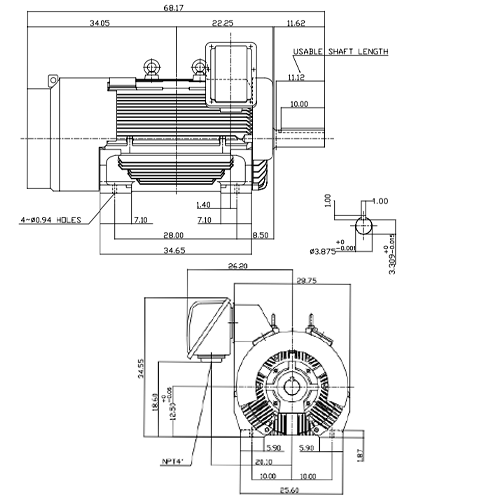

Motor, 300hp/75hp, 1800 RPM, 5009B Frame, 460VAC, 3 Phase, 2-Speed, 1 Winding, Variable Torque, IP55
- Weight:
- 4,125.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse 2-Speed, 1 Winding, Variable Torque series is a totally enclosed fan-cooled (TEFC) motor line that delivers two operating speeds from a single winding, suited to fans and blowers that need variable-torque speed control without a second winding.
Key Features
- Totally Enclosed Fan Cooled (TEFC) construction
- Two-speed operation from a single motor winding
- Cast iron frame, end brackets, fan cover, and main conduit box
- 1.15 continuous service factor at 60 Hz
- Class F insulation, Class B temperature rise, NEMA Design B torque minimum
Certifications
- Self-Certified for Class I, Division 2, Groups B, C, D
