Teco Westinghouse
CP2004/8

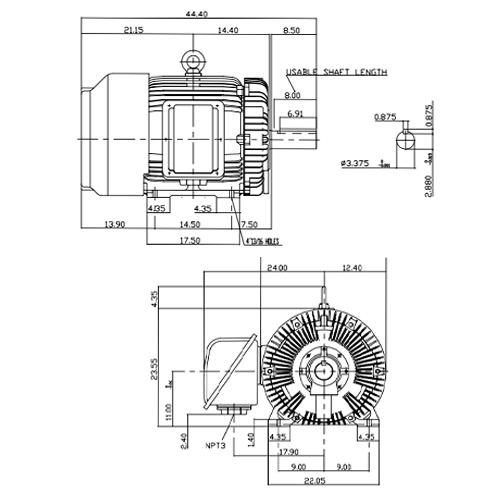

Motor, 200hp/50hp, 1800 RPM, 447/449T Frame, 460VAC, 3 Phase, 2-Speed, 1 Winding, Variable Torque, IP55
$22,748.35
2 available from manufacturer (as of 10/12/2026)
CP1004/8
$12,638.60
Motor, 100hp/25hp, 1800 RPM, 444T Frame, 460VAC, 3 Phase, 2-Speed, 1 Winding, Variable Torque, IP55
- Weight:
- 1,855.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Teco-Westinghouse 2-Speed, 1 Winding, Variable Torque series is a totally enclosed fan-cooled (TEFC) motor line that delivers two operating speeds from a single winding, suited to fans and blowers that need variable-torque speed control without a second winding.
Key Features
- Totally Enclosed Fan Cooled (TEFC) construction
- Two-speed operation from a single motor winding
- Cast iron frame, end brackets, fan cover, and main conduit box
- 1.15 continuous service factor at 60 Hz
- Class F insulation, Class B temperature rise, NEMA Design B torque minimum
Certifications
- Self-Certified for Class I, Division 2, Groups B, C, D
