Weg
00318ET3E182TC-S

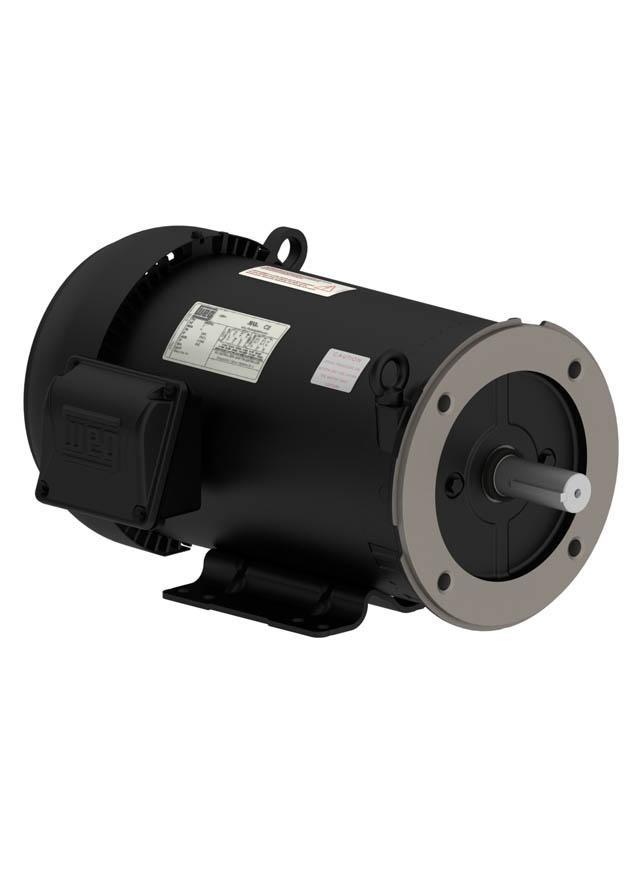

Motor, 3hp, 1800rpm, 3 Phase, 208-230/460V, 182/4TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
$542.90
We pause this Memorial Day to honor and remember those that gave their lives in service to our country.
Our offices will close at 1 p.m. on Friday, May 22nd and reopen on Tuesday, May 26th.
00318ET3E182TC-W22
Alt: 12445724
$623.00
Motor, 3hp, 1800rpm, Three Phase, 208-230/460V, 182/4TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty W-22, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 99.30 LBS
- Minimum Purchase:
- 1 unit
Description
Please note that motors do not qualify for free shipping.
Severe duty is standard with WEG W22 motors!
- All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
- Other IP ratings are available as well
- All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
- All Cast Iron Construction, including Terminal Box and Fan Cover
- Solid feet for reduced vibration levels and impact absortion
- Optimized ventilation system for cooler operation and extended life
- High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
- Exclusive W-Seal 364T and larger provides superior bearing protection
- Taconite Labyrinth seal 586 Frame and larger
- Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
- Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
- Four Bolt Conduit Cover with glued Neoprene Gasket
- Impregnation Resin and magnet wire are insulation class H
- Stainless Steel Nameplate - Laser edged with high contrast background
- Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
- Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G
Product Features:
Frame
- 182/4TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1760 rpm
No Load Current
- 2.00-4.00/2.00 A
Rated Current
- 8.65-7.82/3.91 A
Rated Torque
- 8.83 ft.lb
Frame Material
- Cast Iron
Approx. Weight
- 93.0 lb
Need More Information?
- Weg W22 Three-Phase Electrical Motor Brochure
- Weg W22 Three-Phase Electric Motor Technical Catalog
- Weg Three-Phase General Purpose Motor Catalog
- Weg Three-Phase General Purpose Motor Instruction Manual
- Weg Three-Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
