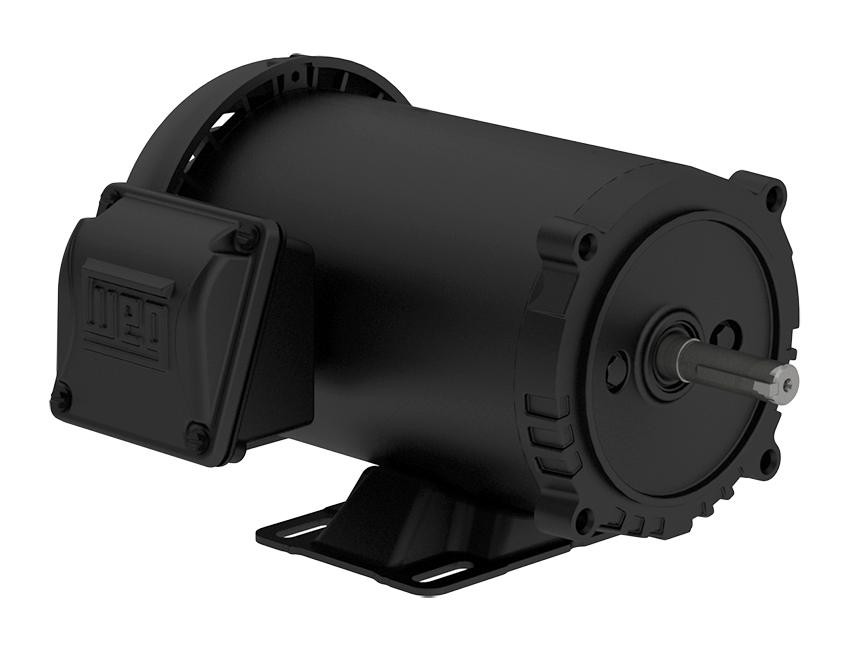

.2518ES3H56C-S

WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.



WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

• Standard: NEMA MG-1
• Frequency: 60 Hz
• Voltage: 575 V
• Rated current: 0.417 A
• No load current: 0.360 A
• Rated torque: 0.744 ft.lb
• Number of poles: 4
• Degree of Protection: IP55
• Synchronous speed: 1800 rpm
• Output rating: 0.25 HP
• Starting Method Direct On Line
• Mounting: Foot-mounted
• Flange: Without
• Mounting: F-1
• Terminal box¹: Left position
• Enclosure: IC411 - TEFC

Technical Information:

• Weg .2518ES3H56C-S Rolled Steel Datasheet
• Weg W01 Rolled Steel Fractional Horsepower Motor Brochure
• Weg Rolled Steel Fractional Motor Brochure
• Weg Installation, Operation and Maintenance Manual of Electric Motors
• Weg Installation, Operation and Maintenance Manual of Low and High Voltage Electric Motors
• Weg Global MEPS Guide for Low Voltage Motors
• Weg Rolled Steel Motors Catalog
• Weg Part Number Configuration
• Weg Motors Winding Damages White Paper
• Weg Specification of Electric Motors
• Weg Single Phase and Three Phase General Purpose, IEEE, Brake Motors Catalog
• Weg Standard Product Catalog
