.7536AS3EAF56Z-S
Weg

.7536AS3EAF56Z-S

Alt: 13248313

$357.78

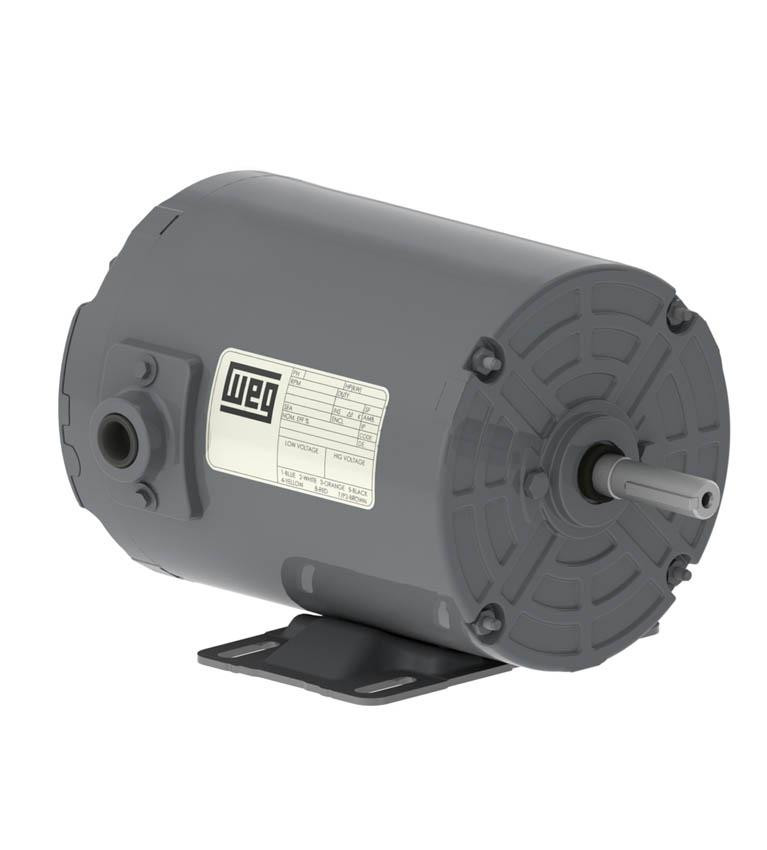

Motor, .75hp, 3600rpm, 3 Phase, 208-230/460V, 56Z, Farm Duty; Aeration Fan; TEAO

Weight:
23.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 0.75hp 3600rpm, 3-Phase 208-230/460V, 56Z, Farm Duty; Aeration Fan; TEAO

Features Include:

  • Output Rating: 0.75 HP (0.550 kW)
  • Rated Voltage: 208-230/460 V
  • Rated Current: 2.50-2.26/1.13 A
  • Synchronous Speed: 3600 rpm
  • Rated Speed: 3475 rpm
  • Rated Torque: 1.12 ft.lb
  • Number of Poles: 2
  • Frequency: 60 Hz
  • No-Load Current: 0.000-1.10/0.550 A
  • Starting Method: Direct on Line
  • Mounting: Foot-Mounted, F-1
  • Enclosure: IC410 - TEAO
  • Frame: 56Z
