.3318ES1RFDW56-S
Weg

.3318ES1RFDW56-S

Alt: 13590271

$238.53

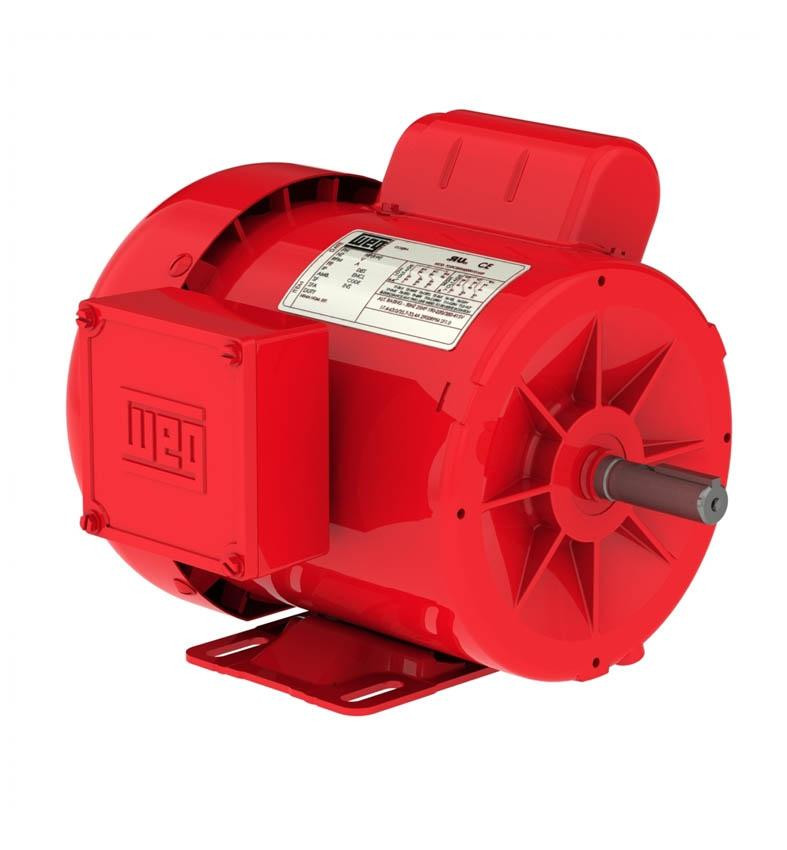

Motor, 0.33hp, 1800rpm, Single Phase, 115/230V, W56, General Purpose, TEFC Foot Mount, Thermally Protected

Weight:
22.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Our Weg farm duty motors give you high starting torque and include v-rings as standard.

These motors are versatile for indoor and outdoor applications and overload protection available in all frams protects the motor from extremem overloads.

This is a general purpose TEFC motor that offers:

  • Doubl shielded ball bearings
  • Insulation class F with class B temperature rise
  • Start and run capacitor on 1.5 hp and up
  • High starting torque
  • Manual reset thermal overload protector

Features Include:

Output Rating:

  • 0.33 HP (0.25 kW)

Rated Voltage:

  • 115/230 V

Rated Current:

  • 5.60/2.80 A

Synchronous Speed:

  • 1800 rpm

Rated Speed:

  • 1750 rpm

Rated Torque:

  • 0.977 ft.lb

Number of Poles: 4

Frequency: 60 Hz

No-Load Current: 4.60/2.30 A

Starting Method:

  • Direct on Line

Mounting:

  • Foot-Mounted, F-1

Enclosure:

  • IC411 - TEFC Totally (Enclosed Fan Cooled)

Frame: B56

Frame Material: Rolled Steel
