.1818EP3EAL63-W22
Available from manufacturer (as of 10/27/2026)
Weg

.1818EP3EAL63-W22

Alt: 13982681

$237.63

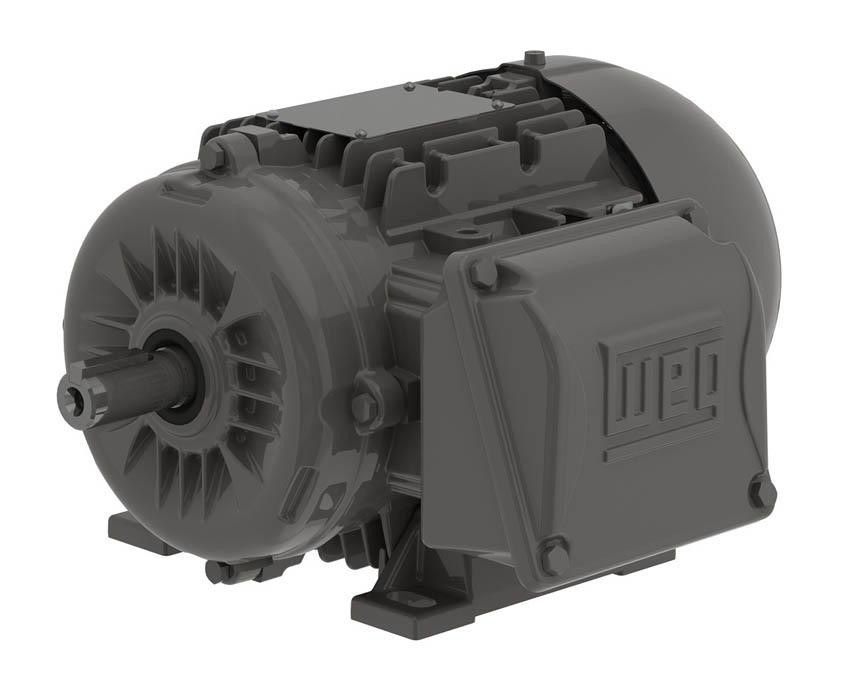

Motor, 0.25hp, 1800rpm, 4-Pole, 63 Frame, 3 Phase, 230/460//380-415V, 60Hz, Multimounting High Efficiency, TEFC, B3L(E) Mounting, Footed, No Flange, Right Position Terminal Box, IP55

Weight:
16.80 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
IEC-frame motors built for general-purpose industrial applications
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

  • Standard: NEMA MG-1
  • Frequency: 60 Hz
  • Voltage: 230/460//380-415 V
  • Number of poles: 4
  • Mounting: Foot-mounted
  • Mounting: B3L(E)
  • Terminal box: Right position
  • Frame: 63
  • Enclosure: IC411 - TEFC
  • Frame Material: Aluminum
  • Impregnation Method: Dip and Bake Polyester
  • Main terminal box hole: NPT 1/2"
  • Terminal Block: BMC - 6 pins
  • Drain: Rubber, automatic
