00158NT3FVD145TC-W22
Weg

00158NT3FVD145TC-W22

Alt: 12592403

$627.45

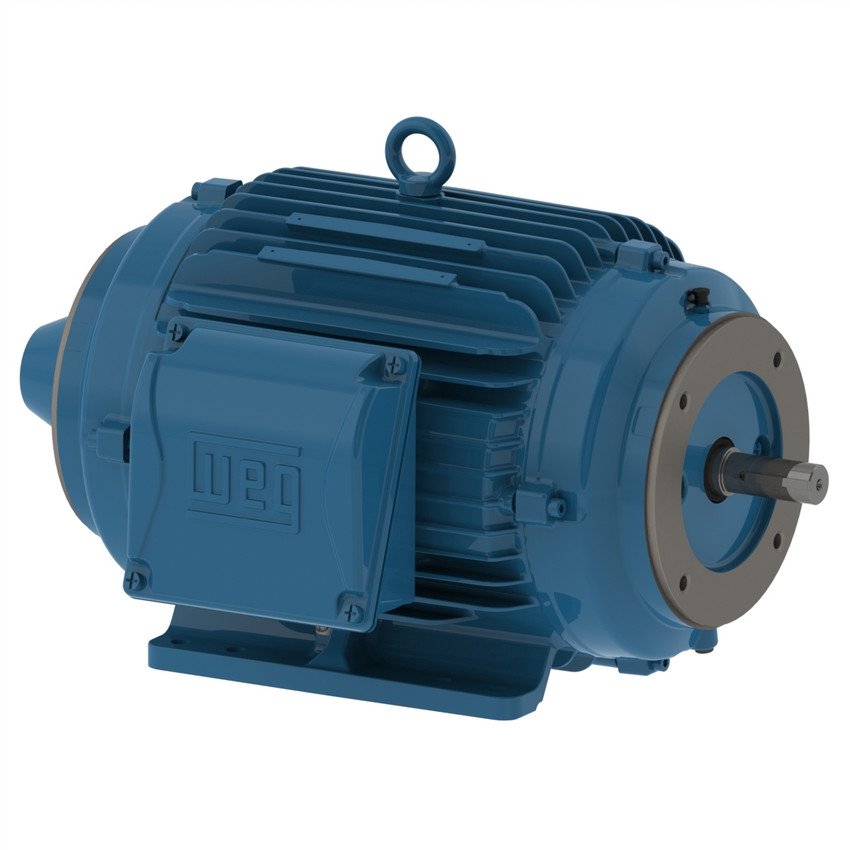

Motor, 1.5hp, 900rpm, 3 Phase, 230/460V, 404/5T, Severe/Vector Duty, TENV Foot Mount, Double C-Face

Weight:
60.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Motor, 1.5hp, 900rpm, 3-Phase 230/460V, 404/5T, Severe/Vector Duty, TENV Foot Mount, Double C-Face

Features Include:

Output Rating:

  • 1.5 HP (1.1 kW)

Rated Voltage:

  • 230/460 V

Rated Current:

  • 3.99/2.00 A

Synchronous Speed:

  • 1800 rpm

Rated Speed:

  • 1755 rpm

Rated Torque:

  • 4.43 ft.lb

Number of Poles: 4

Frequency: 60 Hz

No-Load Current: 2.15/1.08 A

Starting Method:

  • VFD

Mounting:

  • Foot-Mounted, F-1

Enclosure:

  • IC410 - TENV

Frame: 143/5TC

Frame Material: Cast Iron

Need More Information?

  • Weg W22 Three-Phase Electrical Motor Brochure
  • Weg W22 Three-Phase Electric Motor Technical Catalog
  • Weg Three-Phase General Purpose Motor Catalog
  • Weg Three-Phase General Purpose Motor Instruction Manual
  • Weg Three-Phase General Purpose Motor Operation Manual
  • Weg Product Number Configuration
  • Weg Standard Product 2020 Catalog
  • Warranty Terms for Weg Automation Products
  • 'Extend to a 3 Year Warranty' Form
