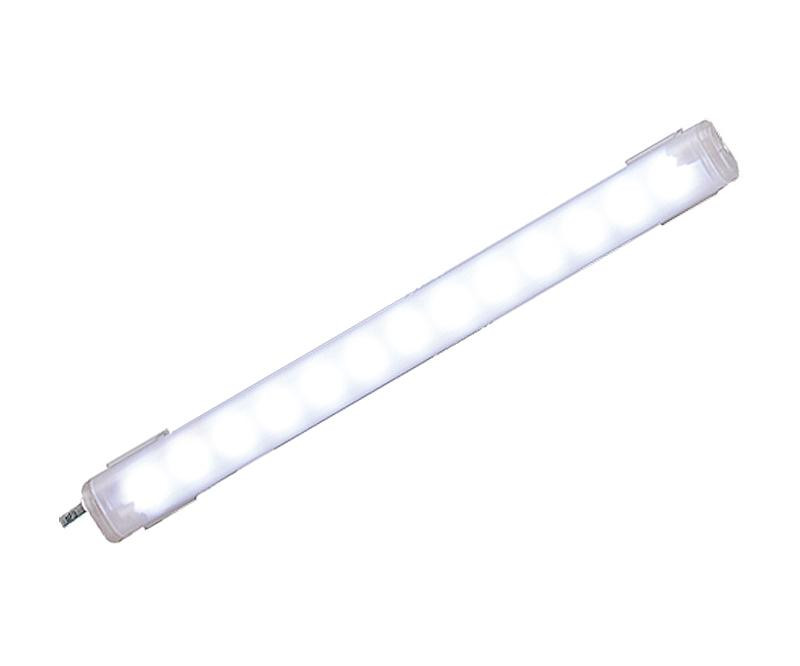

CLA3S-24A-CD

Features Include:

• Dimensions: Overall dimensions without brackets: - 324mm x 30mm x 19.5mm
• Operating Voltage: 24VDC
• Functions: Continuous Only
• Mounting: Snap-in screw mounted bracket: Snap-in magnetic mounted bracket, Side mounted brackets, Indoor, any direction
• Body Style: Polycarbonate housing, Pre-assembled, pre-wired
• Body Color: Translucent-white
• Light Source - High-intensity LED chip, Daylight
• Average Service Life (specified when brightness decreases to 70%) : 40,000 hours
• Lens Material: Translucent-white Polycarbonate Resin
• Conformity Standards: CE Marking, UL, RoHS
• Designed to withstand water, oils, and chemicals.
• Suitable for use in in CNC machinery where water, oils, and small shaving particles disperse, and areas where strict hygienic regulations are in place and require rigorous high-pressure wash-downs of their equipment.
• The housing of the light bar is constructed with polycarbonate resin, making its body rugged and hard to break and reduces the risk of shattering and fragments getting mixed into production areas.
• Compatible with a range of mounting methods including snap-in, magnetic, and side-mount brackets.
• 3m cable included.

Technical Information:

• Patlite CLA Series Sales Pamphlet
• Patlite CLA Series Manual
• Patlite CLA Series Specification Sheet
• Patlite General Product Catalog
