Exergen
IRT/C.1X-J-240F/120C

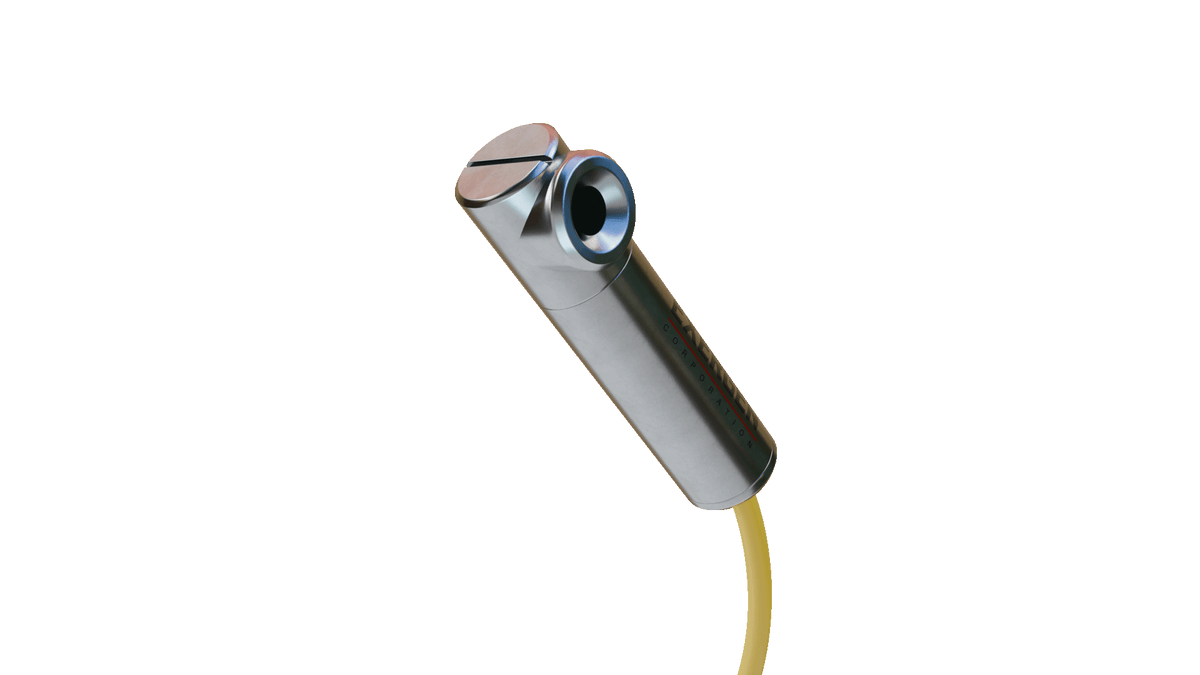

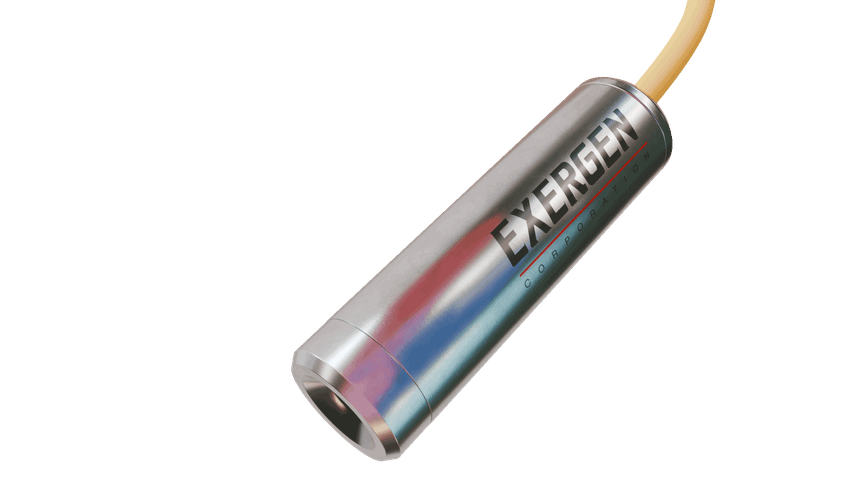

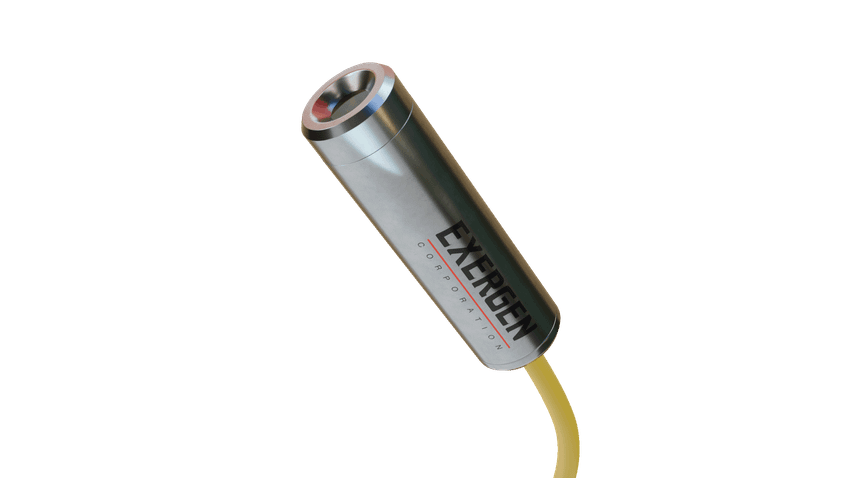

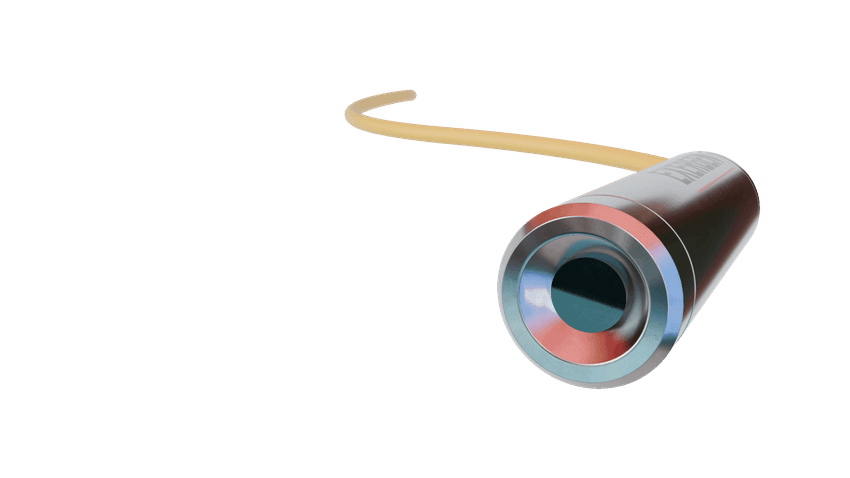

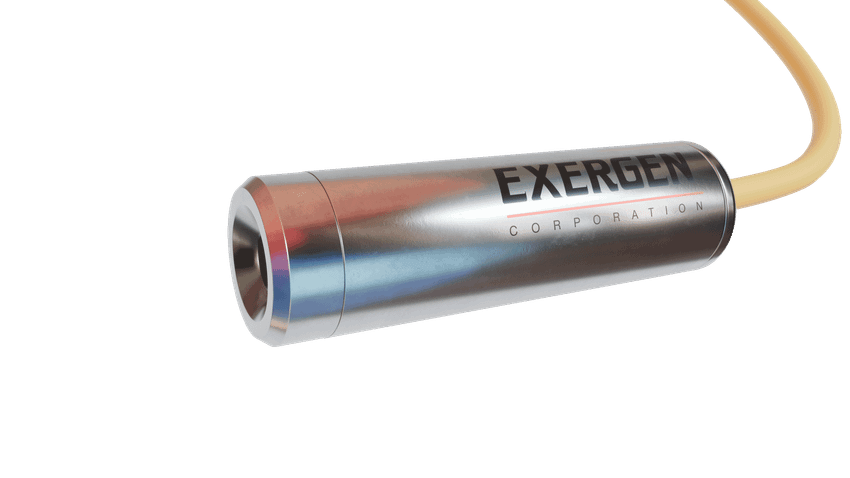

Infrared T/C, J Type, 240°F/120°C, Stainless Steel, 1:1 FOV, Shielded, Linear from 180-250°F, Threaded Body, Bracket and Locknuts
$321.30
Available Now!
Available Now!
(1 in stock)
IRT/C-J-240F/120C
Alt: 109900
$303.45
Infrared T/C, J Type, 240°F/120°C, Stainless Steel, 1:1 FOV, Shielded J t/c, Linear 180-250°F
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Sensing Range: -50 to 1200 °F (-45 to 650 °C)
- 0 to 212 °F (-18 to 100 °C)
- Optimum Range Selections: Eight models per t/c type (see Temperature Selection Guide)
- Field-of-View: 1:1 (60°) approximately
- Minimum Spot Size: 0.3" (8 mm)
- Spectral Response: 6.5 to 14 µ
- Output Impedance: 3 Kohms approximately
- Cable: Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392 ºF (200 ºC) continuous service.

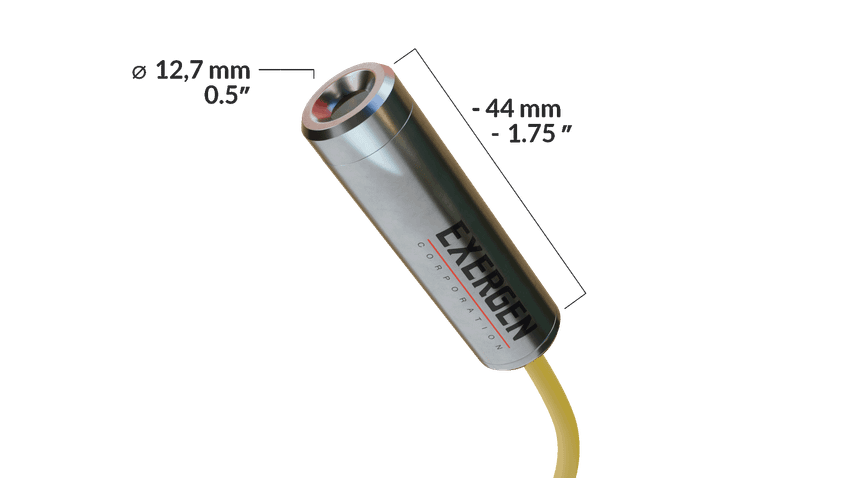

- Dimensions: 1.75" x .50" Diameter (44 x 12.7 mm)
- Weight: 1.4 oz (40 g) with cable
- Housing: Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.
Accessories
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Exergen
IRT/C.01-J-240F/120C
Infrared T/C, J Type, ABS, 1:1 FOV, 240°F/120°C, Linear from 180-250°F, Unshielded, Light Duty with Nylon Locknuts
$195.50
Exergen
IRT/C-K-240F/120C
Infrared T/C, K Type, 240°F/120°C, Stainless Steel, 1:1 FOV, Regular Mount, Pre Calibrated, Linear 180-250°F
$303.45
Exergen
IRT/C.01-K-240F/120C
Infrared T/C, K Type, ABS, 1:1 FOV, 240°F/120°C, Linear from 180-250°F, Unshielded, Light Duty with Nylon Locknuts
$195.50
Exergen
IRT/C.1X-K-240F/120C
Infrared T/C, K Type, 240°F/120°C, Stainless Steel, 1:1 FOV, Air Purge, Threaded Body, Bracket and Locknuts
$321.30
