Optimum Range Selections: Eight models per t/c type (see Temperature Selection Guide)
Field-of-View: 3:1 (17°) approximately
Minimum Spot Size: 0.25" (6 mm)
Spectral Response: 6.5 to 14 µ (2 to 20 µ with IRt/c.3XG germanium lens)
Output Impedance: 4 to 8 Kohms approximately
Cable: Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392 ºF (200 ºC) continuous service.

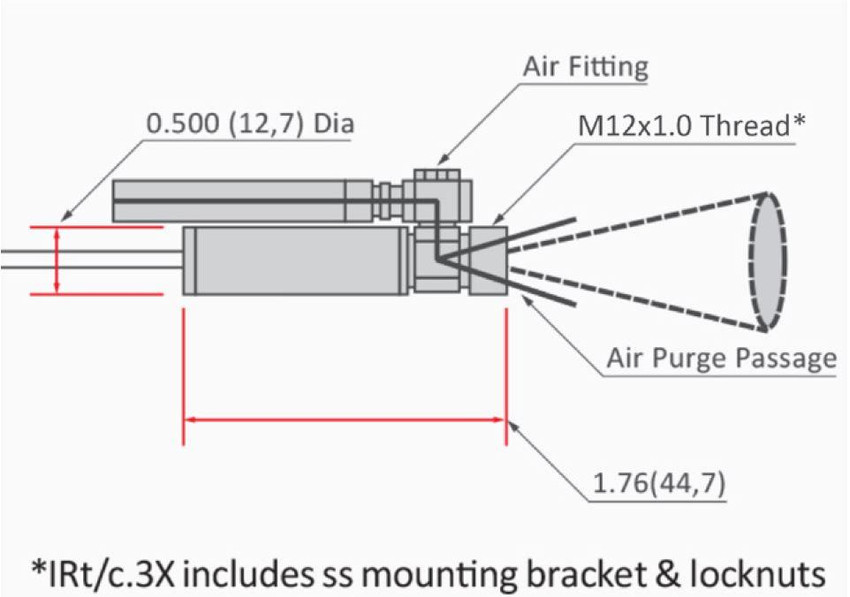

Dimensions: 1.76" x .50" Diameter (44.7 x 12.7 mm)
Weight: 1.4 oz (40 g) with cable
Housing: Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.
Air Purge: Built-in; designed for severe paint or ink environment; 3; (0.9 m) of tubing provided.
