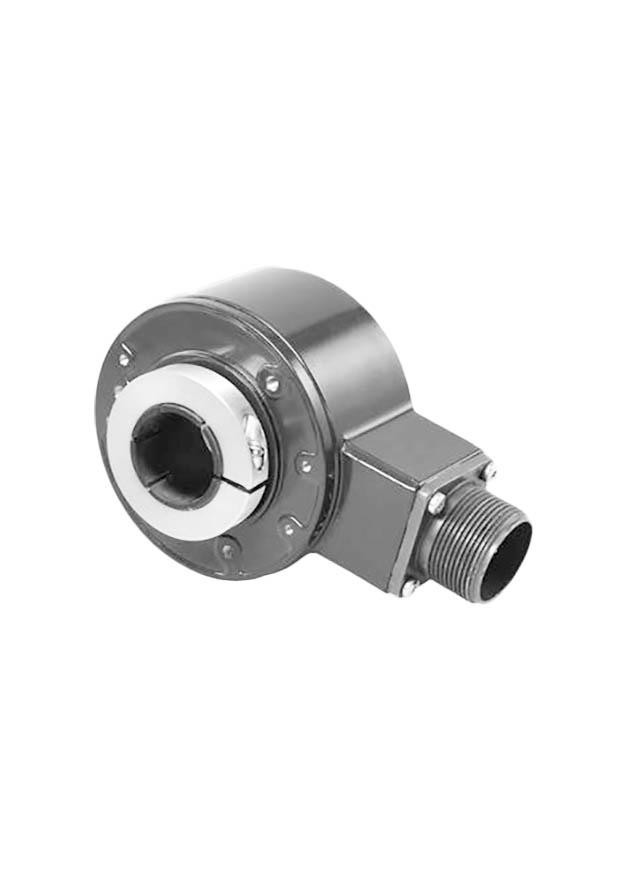

Incremental Encoder, 1024PPR, 4.75-30VDC, IP65, MIL 10-Pin, Std. Phasing, ABZ+Comp., HTL Signals

SKU:: HS35F 01024 H ABZC MI10 B E 100 5
Minimum Purchase:: 1 unit

Description
Accessories

Features Include:

Robust industrial encoder up to IP 67 protection
Shock resistant up to 200 g's
Insulating insert to prevent high shaft currents from damaging bearings
Wide range voltage supply 4.75 - 30 VDC
Precision ≤60 arc-seconds for perfect process control
Max. 80000 pulses per revolution
Operating Temperature: -40 - +212 °F (-40 - +100 °C), (fixed cable)

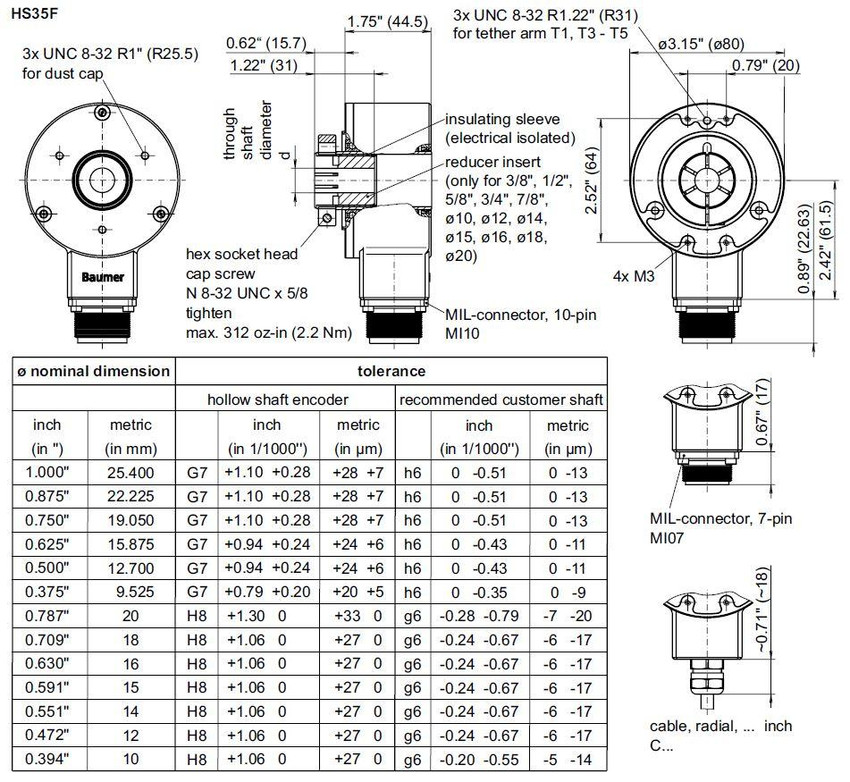

Size (flange): ø3.15" (ø80 mm)
Shaft Type: ø0.375 - 1" (ø9.525 - 25.4 mm) (through hollow shaft isolated)

Consumption without load:

≤40 mA (24 VDC)
≤130 mA (4.75 VDC) + output load, max. 250 mA

Output Frequency:

≤300 kHz (TTL)
≤160 kHz (HTL)
≤160 kHz (OC)

Output Signals:

A, B, Z
A, B, Z + complement, ½ cycle index gated with negative B channel

Output Stages:

Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof
Push-pull (HTL, 7272) Vout = Vin, short-circuit proof
Open Collector (OC, 7273) Vout = Vin, short-circuit proof
