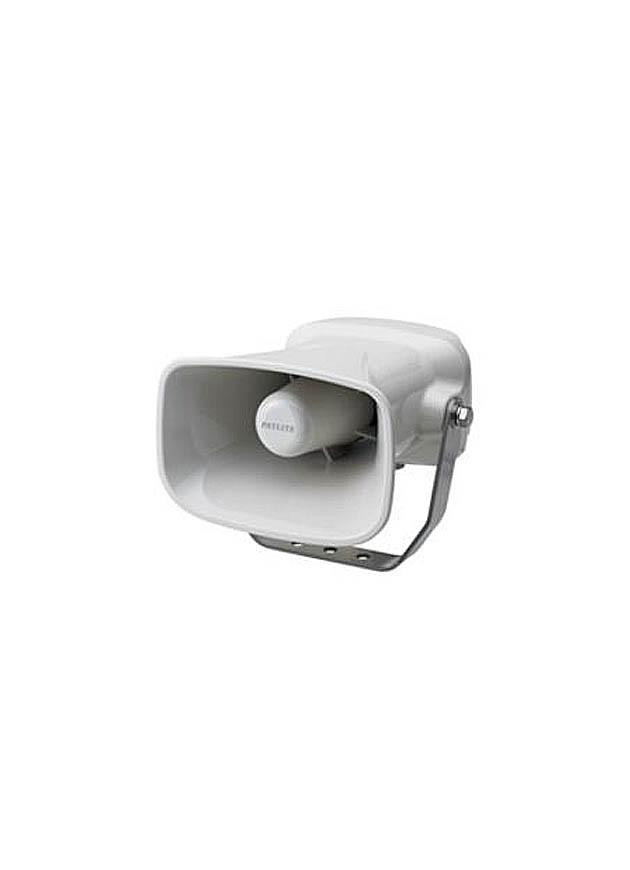

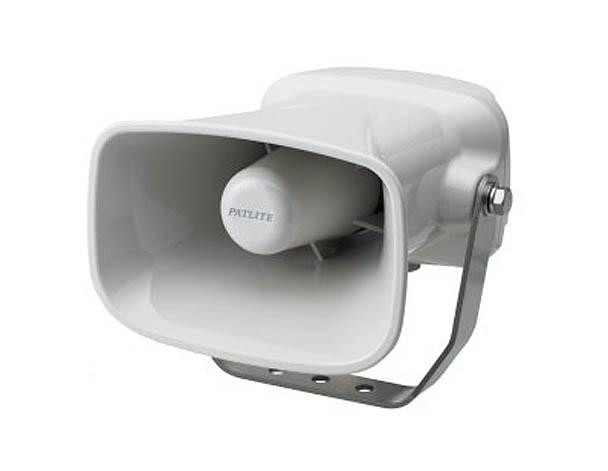

EHS-M2HE

The EHS series is ideal for industrial applications - it is compact and has a sound output of 110dB (at 1m!).

There is now a sound synthesizer mode that can be heard easily in noisy environments. This series can endure vibration resistance up to 4.5G's - ideal for forklifts and AGV application.

Marshall Wolf Automation is your authorized Patlite distributor.

Features Include:

• Explosion-Safe for gas and dust, Suitable for Zone 2 and Zone 22
• A 30% decrease in size in comparison to our current model (EWH) for a more compact design
• Stronger vibration resitant characteristics to withstand up to 4.5G force
• EHS-EX comes with 32 preloaded melody and alarm sounds with adjustable volume up to 110dB (@ 1m)
• Now offers a selection between Cable connection or Terminal connection
• 4 playback modes in combination with commands available to be setup for the right application
• Playback Modes: Normal Playback; Input Priority Playback; Hold Playback; Memory Playback
• Command Modes: Sound Reduction; Factory; Public Address; Bit/Binary; Forced Playback; Group Selection
• Terminal Assignment Modes: Playback; STOP; CLEAR; Sound Reduction
• Can be used with either PNP or NPN transistor driven inputs
• It complies with Europe's environment-friendly RoHS Directive
• Listed by Underwriters Laboratories Inc. (EHV-M1 Only)
• Ideal for plant-wide notification, public address and process control
• CE Compliance in accordance to ATEX
• CE, RoHS Compliant (EHS-M1 and EHV-M1 Only)
• UL464, CSA-C22.2 NO.205-M1983, FCC Part 15 Subpart B Class 4

Need More Information?

• Patlite EHS-EX/EHV-EX Explosion-Safe Melody/Alarm Horn Brochure
• Patlite Explosion Protection & Harsh Environment Product Catalog
