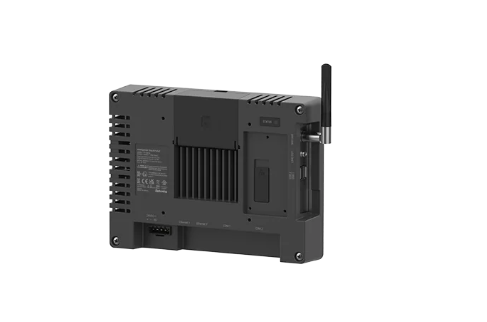

iTP-GW

The Autonics iTP Series gateway is a screenless HMI gateway that brings the processing power and connectivity of the iTP advanced graphic panel platform to applications that do not require a display. Used for real-time data exchange and SCADA data collection between equipment and systems, it is powered by the same quad-core Cortex-A53 processor at 1.6 GHz with 4 GB of DDR4 memory and 16 GB of eMMC storage and connects directly to databases (MS SQL Server, MySQL, MariaDB, Oracle, PostgreSQL), enabling production data collection and monitoring for small-scale systems or connections between specific devices without the need for separate servers or complex software, offering cost savings and easier maintenance. It retains the flexible connectivity of the series and is configured and monitored through SCADAMaster-Designer, VNC, and the built-in web tool.

Key Features

• Quad-core Cortex-A53 CPU at 1.6 GHz with 4 GB DDR4 memory and 16 GB eMMC storage
• Screenless gateway model for display-free, real-time data exchange between equipment and systems
• Connects directly to databases (MS SQL Server, MySQL, MariaDB, Oracle, PostgreSQL) without separate servers or complex software
• 24 VDC power supply
• Dual Gigabit Ethernet (10/100/1000BASE-T), two serial ports (RS-232C/RS-422/RS-485), USB 2.0 and 3.0, and 2.4 GHz Wi-Fi
• SD card support up to 256 GB (SDXC/SDHC)
• Configured and monitored through SCADAMaster-Designer, VNC, and the built-in web tool
• DIN rail mounting and 100 x 100 mm VESA wall mounting; aluminum die-cast case; IP20-rated

Certifications

• CE, UKCA, cULus (UL Listed), KC
