F2RPN-J

Fiber Optic Sensor, Through Beam, PNP, Red LED, Requires Cable with Connector, 12/24VDC

Features Include:

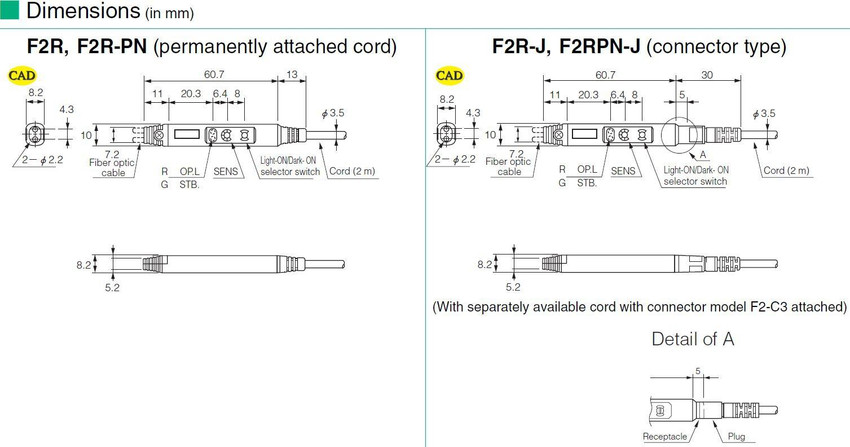

• Amazingly slim (8 x 10 x 73 mm)
• Amplifier can be used as if it were cable
• 2 output types: NPN or PNP
• Detection Method: Through beam type, reflective type (Dependent on fiber optic cable)
• Detecting Distance: Dependent on fiber optic cable
• Power Supply: 12 - 24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10% or less

• Current Consumption: 30mA or less
• Output Mode: PNP Open Collector Output Rating: Sink current 100mA (30VDC) or less
• Operation Mode: Light ON/Dark ON selector switch/timer selector switch provided
• Response Time: 500μs or less
• Hysteresis: Up to 10% of detecting distance
• Light Source: Infrared LED (660nm)
• Volume (VR): SENS : Sensitivity adjustment volume provided
• Switch (SW): Light ON/Dark ON selector switch/timer selector switch provided
• Material: Case: Noryl (filler: styrene elastomer)
• Connection: Attached cable (outer dimension: dia. 3.5) 0.2sq. 3 cores, 2m

Indicator:

• Red LED: Operation Indicator
• Green LED: Stability Indicator

Environmental Specifications:

• Ambient Light: 3,000 lx or less
• Ambient Temperature: -25 - +55 °C, Storage: -40‚Äö√Ñ√∂‚àö√ë‚àö‚Ñ¢+70‚Äö√Ñ√∂‚àö√´‚àö√¢ (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
