F70ARPN

Fiber Optic Sensor, Digital Display, NPN, Red LED, M8 Cable, Brackets, 12/24VDC

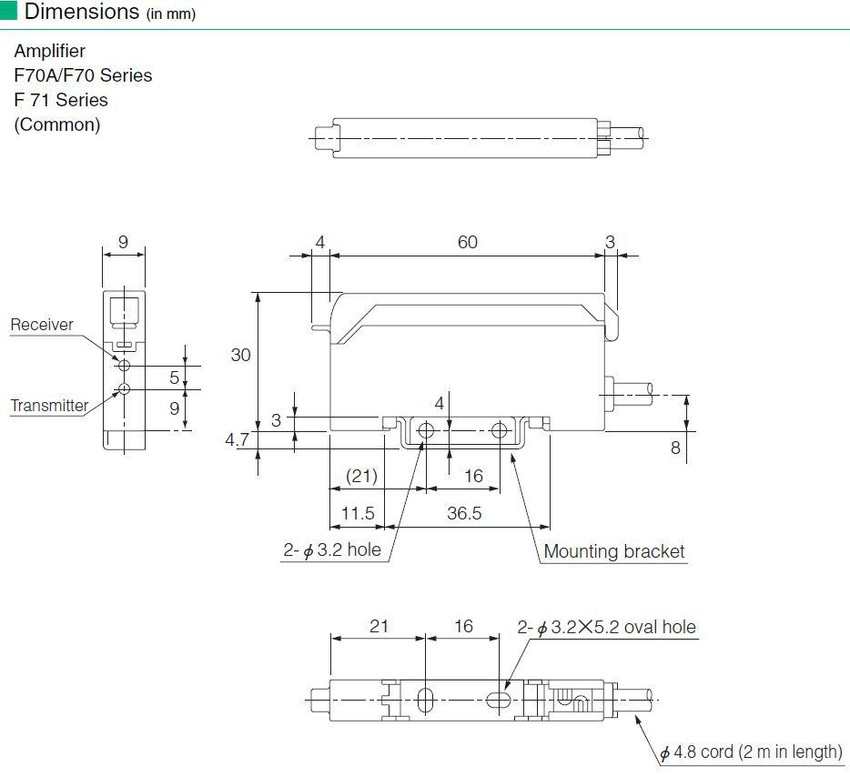

Features Include:

• The digital presentation of sensing information
• Function setting by an easy operation ( Full auto/ Auto 2 point teaching).
• The stability level is displayed directly in a receiving optical level and the displacement display.
• Display which sees easily in back light addition LCD.
• It equips with an easy-to-use function
• Power Supply: 12 - 24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10% or less

• Current Consumption: 50mA or less
• Operation Mode: Light ON/Dark ON selectable
• Timer: Off delay/disabled selectable Delay time: 40 ms fixed
• Light Source: Infrared LED (680nm)
• Display: LCD display with backlight
• Switch: 2 set buttons / Mode selector switch: RUN/SET
• Sensitivity Setting: Full auto teaching
• Sensitivity Setting Input: Set button input
• Sensitivity Adjustment Function: Provided (manual sensitivity adjustment)
• Material: Polycarbonate
• Connection: (outer diameter: 4.8mm) 0.2mm2, 3 cores, 2m
• Weight: Cable type: approx. 80 g (including cables and mounting bracket); M8 connector type: approx.. 25g

Output Mode:

• Open collector output
• Rating: Source current 100 mA (30 VDC) or less
• Residual voltage: 2 V or less

Indicator:

• Orange LED: Operation Indicator
• Green LED: Stability Indicator

Response Time:

• Light emission frequency channel 1: 600 μs or less
• Light emission frequency channel 2: 700 μs or less

Functions:

• * Mutual Interference prevention feature
• * Short circuit protection feature

Environmental Specifications:

• Ambient Light: Incandescent lamp: 10,000 lx / Sunlight: 20,000 lx
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1000 VAC for 1 minute
• Insulation resistance: 500 DVC, 20MΩ or more

Ambient Temperature:

• 1-3 adjacent units in operation: -25 - ‚àö√Ƭ¨‚à´‚àö¬£55‚Äö√Ñ√∂‚àö√´‚àö√¢
• 4-10 adjacent units in operation: -25 - ‚àö√Ƭ¨‚à´‚àö¬£55‚Äö√Ñ√∂‚àö√´‚àö√¢
• 11-16 adjacent units in operation: -25 - ‚àö√Ƭ¨‚à´‚àö¬£45‚Äö√Ñ√∂‚àö√´‚àö√¢
• Storage: -40 - ‚àö√Ƭ¨‚à´‚àö¬£70‚Äö√Ñ√∂‚àö√´‚àö√¢
