Enclosed Starter for 1/2hp@200V, 1/2hp@230V, 1-1/2hp@460V, 1-1/2hp@575V Maximum hp 3-Phase Motor, 9 Amp CWB Contactor, 120VAC Coil Voltage without CPT, 50/60Hz, 1.6 - 2.5 Amp MPW40 Overload Relay
SKU:
ESWE-B9D15KX-D07
Minimum Purchase:
1 unit

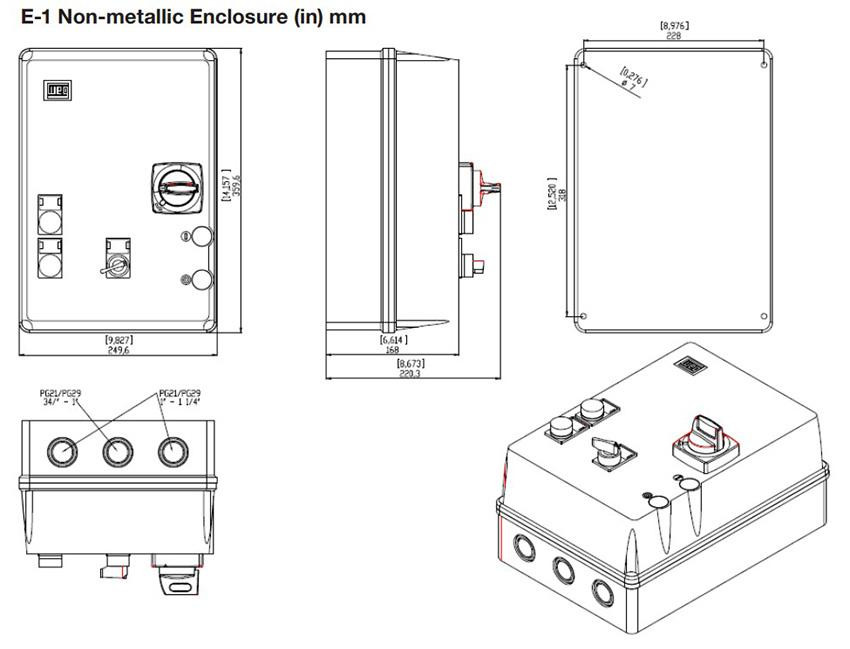

Full Voltage Combination Type E Across The Line Non-Reversing Motor Starter without Control Power Transformer, Non-Metallic 4X Enclosure, Hand-Off-Auto Switch, Start-Stop Pushbutton, Pilot Lights, Size E-1: 14.2 x 9.9 x 6.6 " (HWD)
WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.
Magnetic starters are designed to protect and operate motors.
There are a number of starters available from WEG:
Non-combination starters:
ESW series is metallic, NEMA 1, across the line starter, three phase
ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
ESWX series is metallic, NEMA 7/9, explosion proof starters
PESW series is non-metallic, NEMA 4X, across the line starter, three phase
PESWS series is non-metallic, NEMA 4X, across the line starter, single phase
Combination starters:
ESWC series
ESWE series
ESWF series
Marshall Wolf Automation is your authorized WEG distributor!
Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.
Features Include:
Start Type: Direct Three-phase
Assembly method (start key): Plastic Crate
Rated current (AC-3): 9A (CWB9)
Overload relay: 1.6-2.5 A (MPW40)
Control voltage: 120V50/60HZ
Control Devices: H-O-A+On+Off+Mr+Signal Switch
Standard Enclosure Type: Non-metallic 4X
Branch Disconnect: rotary through-the-door handle
Short-Circuit Protection: manual motor protection
Motor Control: magnetic IEC contactor
Overload Protection: manual motor protection
Custom enclosure and control options available upon request
