ESV152N02SLC

The Lenze SMVector (ESV) series was first introduced in 2006 and is now in phaseout. Effective July 1st, 2025 there will be a 25% increase on this series.

We have time to make the switch and we have plenty of options for you! To start, we have the Lenze i510 protec and i550 protec as options. You can learn more here.

If you need help, please contact us!

Our popular Lenze AC Tech SMVector series is designed for motor applications that need dynamic speed and torque control. They are ideal for conveyors, food production lines, packaging equipment plus fan and pump systems.

The NEMA 1 version is available in :

• Single phase, 120/240V, 0.33 to 1.5hp
• Single/3 phase, 200/240V, 0.33 to 3hp
• 3 phase, 200/240V, 1.5 to 20hp
• 3 phase, 400/480V, 0.5 to 60hp
• 3 phase, 480/600V, 1 to 60hp

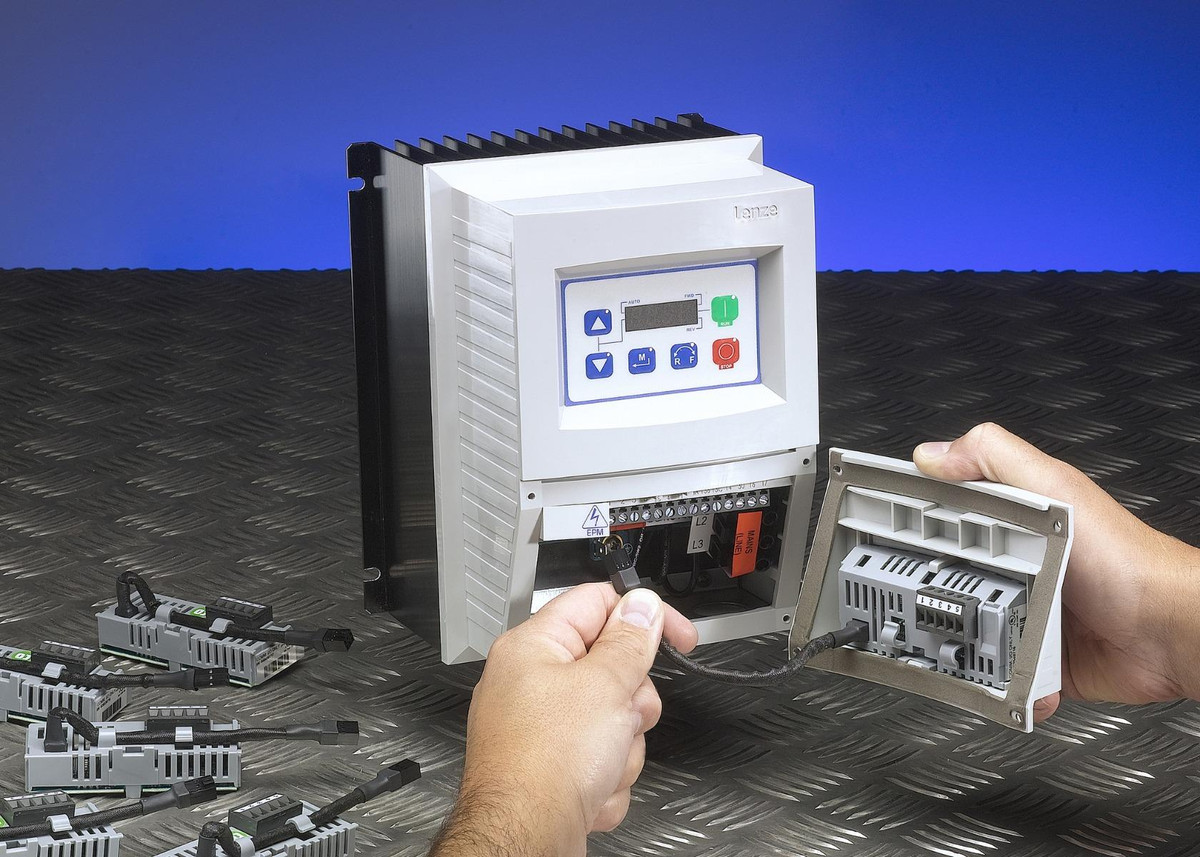

Options Include

• Remote Keypad allows operation from up to 30 m from drive, cubicle mountable, IP65 rating

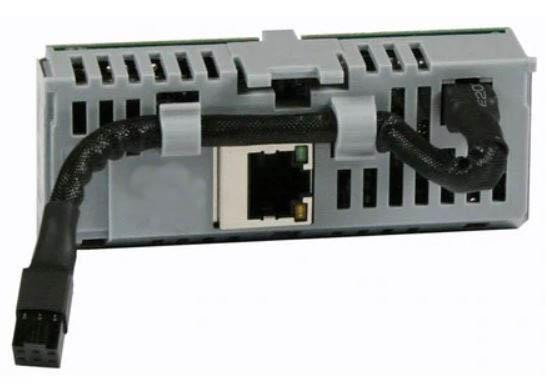

• Extended I/O modules can extend the standard drive I/O by up to 1 extra programmable form C relay output and 2 extra digital inputs
• External Dynamic Braking Unit for drives rated up to 22 kW (30 kW include brake transistor as standard)
• External EMC filter to meet EN61800-3 (First and second environment, category C1 and C2)
• EEPM1RA - EPM programmer enables you to easily duplicate, read, edit and archive the memory and configuration of the SMVector drives

This series is also available in NEMA 4X indoor and NEMA 4X outdoor models.

Whether your application automates a single machine or an entire facility, the SMVector is fully equipped to make the process a breeze.
