Saginaw
SCE-20EL1208LP
Enclosure (EL LP), Single Door, 20 x 12 x 8" HWD, 0.075 Carbon Steel, ANSI-61 Gray, NEMA/UL 3R, 4, 12, NEMA 13, IP66, Enviroline Single Door (ANSI-61 Gray)
$308.91

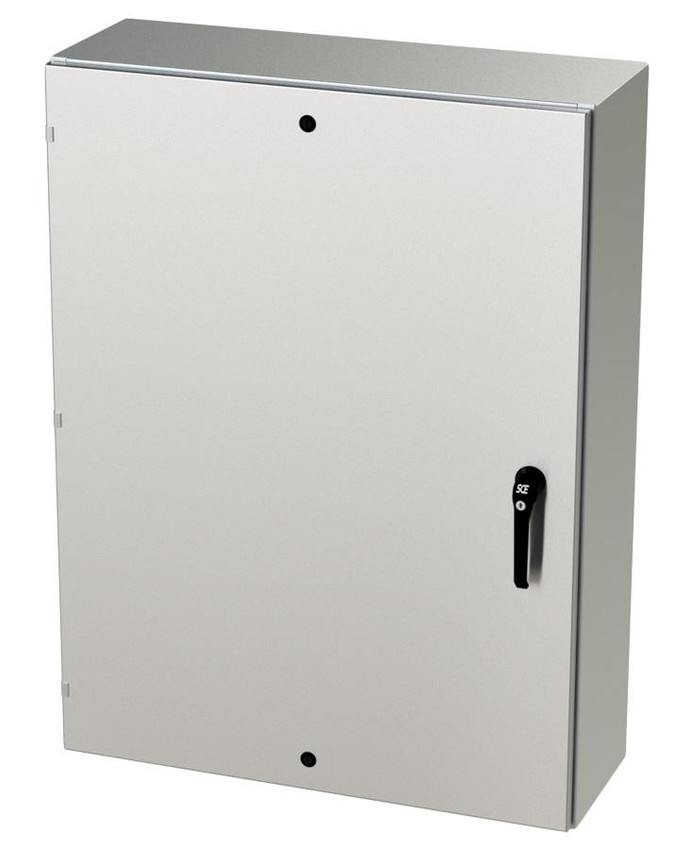

SCE-48EL3612SS6LPPL
Alt: Enviroline Single Door Enclosure with 3 Point Hardware (316 Stainless Steel) Series
$3,189.34
Enclosure, SS LPPL, 48x36x12", 0.075" Stainless Steel Type 316/316L , #4 Brushed Finish on all Exterior Surfaces, (Optional Sub-panels are Powder Coated White.), NEMA 3R, 4, 4X, 12, NEMA 13, IP66
- Weight:
- 225.60 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.075 In. stainless steel Type 316/316L.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Collar studs 3/8-16 provided for mounting optional panels.
- Mounting holes in back of the enclosure for wall mounting
- Mounting hardware, sealing washers and hole plugs included.
- Stainless steel concealed hinges.
- Removable and interchangeable doors.
- Black zinc die cast key locking/padlocking handle.
- 3-point latching mechanism.
- Removable print pocket.
- Pour in place oil & water resistant gasket
- Ground stud on door and body.
Technical Information:
Read more about Enclosures here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$250.71
Saginaw
SCE-HF4001B
Heater with Thermostat, 7.47x4.38x4.56", UL IS24, Thermostat Range 0° to 100°F (-18° to 38°C), Panel Mount, Designed to Protect Electrical Controls from Low Temperatures
$465.78
Saginaw
SCE-RDL3642WF
Door Replacement, Door Hinged on Left, ANSI-61 Gray Powder Coating Inside and Out, for Enviroline Wall Mount Two Door Enclosure, NEMA/UL/CSA Not Applicable, All Door Hardware Sold Separately (Door Hinge: SCE-DHA14)
$276.91
$5,999.01
