EAGLE-1455551

EAGLE-1455551

Alt: Eagle Series

$1,820.14

Meter, Enclosed, 4, M2, ACV, DCV, ACA, Frequency,with Relay

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Simpson Electric's Eagle series is the world's smartest meter!

Simpson's Eagle is a programmable meter with a reinforced, fiberglass enclosure.  It is ideal for outdoor use in industries such as farming, rock quarries, electricians, solar and many others.

Features of the Eagle series include:

  • User figurable to measure AC/DC voltage, AC current or frequency
  • Easily programmable by connecting to computer via USB
  • Main power 100-240VAC
  • User-programmable bar graph and alarms to alert operators when a parameter is out of range
  • User configurable backlight colors of red, green and white
  • 4 character messaging area displays custom messages, alarms and annunciators
  • Interface to other equipment using control relays included
  • Available with or without control relays
  • Field configurable for 120VAC output for alarm to sound or light
  • Also available in rate and process meter
  • Enclosure is NEMA rated type 3, 3R, 3S, 4, 4X, 12 and 13, IP68
  • CE, RoHS, UL
  • Free software download
  • Leadtime only a week for enclosure with single meter, generally two weeks for more

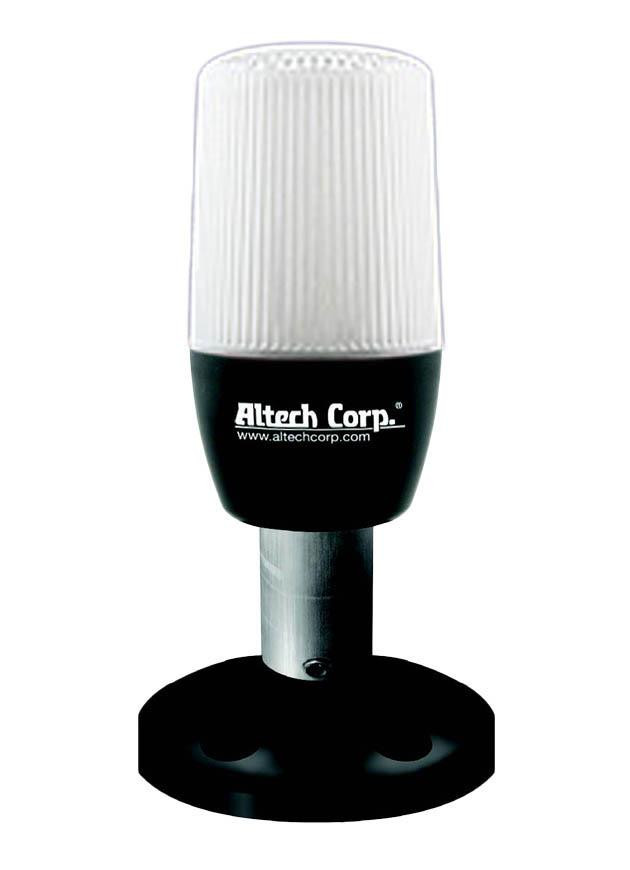

Please note that the light tower shown in accessories is an Altech light tower which we are also an authorized distributor for. You will see the Simpson and Altech options under accessories.

Simpson's Eagle was derived from the Native American Ojibwe word Miigiizi.  For many Native Americans, the bald eagle is a powerful spirit animal. They symbolize power, bravery and also balance.

Features Include:

  • Input Power: 100-240VAC
  • Configuration: PC Application via USB
  • Dimensions (HxLxW): 7.31in x 7.31in x 4.92 in
  • Wire Gauge: 0.8mm² - 3.3mm² (18AWG to 12AWG)
  • Weight: 4 lbs
  • User configurable to measure AC/DC voltage, AC current or frequency
  • User-programmable bar graph and alarms to alert operators when a parameter is out of range
  • User configurable backlight colors of red, green and white
  • 4 character messaging area displays custom messages, alarms and annunciators
  • Interface to other equipment using control relays included
  • Available with or without control relays
  • Field configurable for 120VAC output for alarm to sound or light
  • Also available in rate and process meter
  • Enclosure: NEMA rated type 3, 3R, 3S, 4, 4X, 12 and 13, IP68
  • CE, RoHS, UL
  • Free software download!
  • Leadtime only a week for enclosure with single meter. Contact customer service for leatime of enclosure with multiple meters

Measurement:

  • Volts: 0-600 AC or DC
  • Amps: 0-5A Direct, 0-10,000A via CT
  • Frequency: 2Hz-400Hz

Outputs:

  • 2x Relays
  • 120 VAC
