$126.56
13385436351
Alt: 133 8543 6351, DTS 3161
$4,920.75

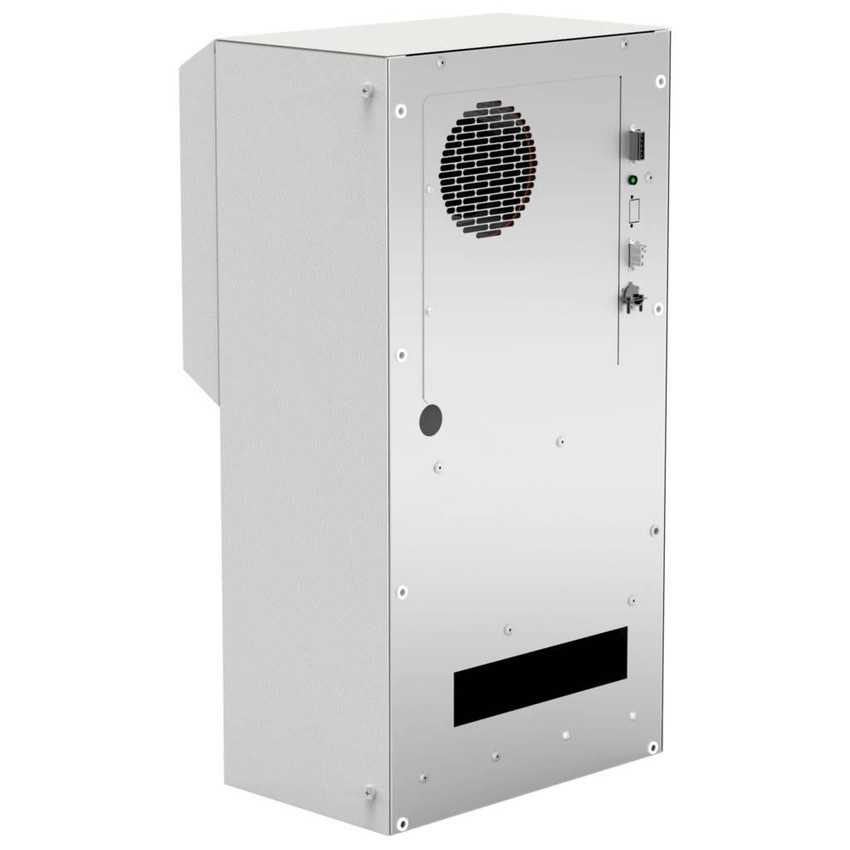

Air Conditioner, NEMA 3R/4 Side Mount, 400/460VAC, 3000-4000 BTU, 50/60Hz, 1200W, ANSI 61 Dark Grey Powder Coated Steel, Outdoor Enclosure, 2A Nominal Current, 15A Fuse Class CC, 70dB(A), R134a/400g, UL, cUL (Drop Ship Only Via Truck)
- Weight:
- 92.00 LBS
- Minimum Purchase:
- 1 unit
Description
We currently offer a small offering of our most popular Pfannenberg products online. Marshall Wolf Automation is an authorized Pfannenberg distributor and can get you the entire line.
Please fill out our Quick Quote form for pricing and delivery on any product you do not see online. Thank you!
Features Include:
- Compact design, ideal for small control cabinets and larger control cabinets for the cooling of hot spots
- Particularly suitable for the food industry and outdoor applications
- High protection system IP 56, maintenance-free
- NEMA 12 (DTS 3141) and 3R/4 (DTS 3161) units with powder coated steel cover
- NEMA 4/4X (DTS 3181) unit with stainless steel cover
- Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
- Integrated condensate evaporation system
Need More Information?
- Pfannenberg DTS 3161 | DTS 3181 Cooling Unit Datasheet
- Pfannenberg DTS 31x1 Cooling Unit Cutout
- Pfannenberg DTS 3141/3161/3181 115/230V Standard-Controller Technical Data
- Pfannenberg DTS 3141/3161/3181 400/460V Standard-Controller Technical Data
- Pfannenberg DTS 3000 Cooling Unit Operation Manual
- Pfannenberg DTS Cooling Unit Project Manual Guide
