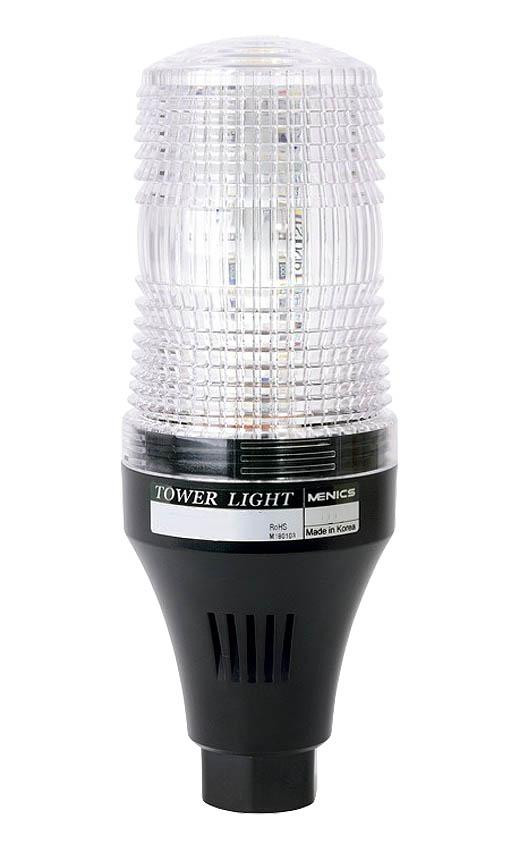

MS70LT-PF00-C

Series Features Include:

• Function: Steady, Flashing, Buzzer
• Power Supply: 12 ~ 24VDC, 110 ~ 220VAC(AC 50/60Hz)
• Alarm Sound: min 50 ~ max 80±5dB
• Dimension: 68mm
• Flashing rate (2 patterns): Normal flashing : 75±5 time/minute, 3 pattern flashing (Emergency signal), 130±5 time/minute
• Connection: UL2464 / 18AWG, AWM, 2C, 300V
• Material Body: Body - ABS resin Lens - PC resin
• Ambient temperature: -20 to 50°C
• Storage ambient: temperature -20 to 70°C
• Ambient Humidity: 45~85% RH
• Insulation resistance: 500VAC 50 / 60Hz for 1 minute
• Vibration: 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
• Approval: CE(DC products only), RoHS
• Protection structure: IP65 (IP50-Buzzer type)
• Weight (DC type): G type: app.196g M type: app.195g P type: app.198g

Current consumption:

• Flashing type: 12~24VDC: 0.12~0.16A, 110~220VAC:0.04~0.05A
• Flashing + Buzzer type: 12~24VDC:0.16~0.21A, 110~220VAC: 0.05~0.06A

Technical Information:

• Menics MS70LT Series Beacon Brochure
• Menics MS70LT Series Beacon User Manual
• Menics MS70LT Series Beacon Mounting Options
