13383644251
Alt: 133 8364 4251, DTS 3145
$4,134.75

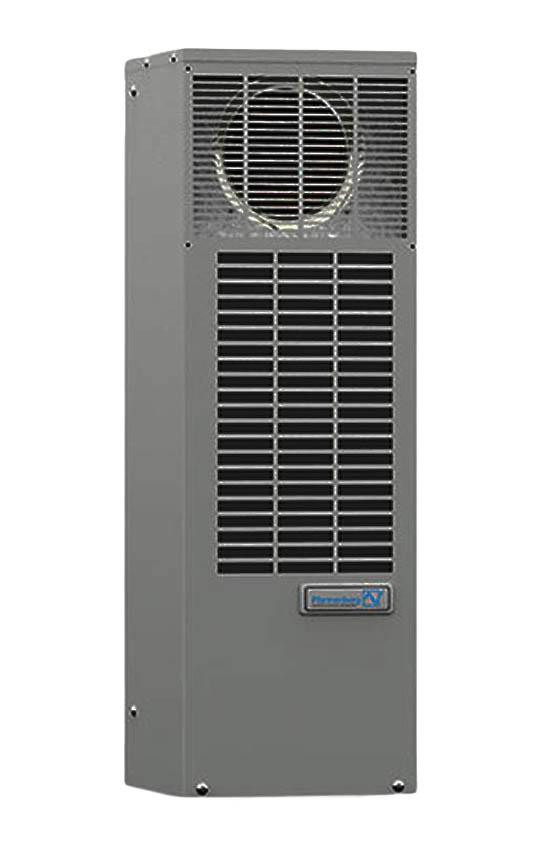

Air Conditioner, NEMA 12 Side Mount, 1000W, 115VAC, 60Hz, 5000-7000 BTU, ANSI 61 Dark Grey Powder Coated Steel, Indoor Enclosure, 8.57A Nominal Current, 15A Fuse Class CC, 70dB(A), R134a/750g, UL, cUL (Drop Ship Only Via Truck)
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Voltage: 115 VAC 60 Hz
- Power Consumption (W): 1000
- Frequency: 50/60 Hz
- Nominal (Run) Current (@35A/35A): 8.57
- Fuse (max) Class CC: 15
- Noise Level dB(A): <70
- Dimensions (H x W x D): 36 in.(914 mm) x 12 in.(305 mm) x 12 in.(305 mm)
- NEMA Type 12 (Model DTS 3145) with powder-coated G-90 galvanized steel cabinet
- Condensate Management: Active condensate evaporation system with safety overflow
Technical Information:

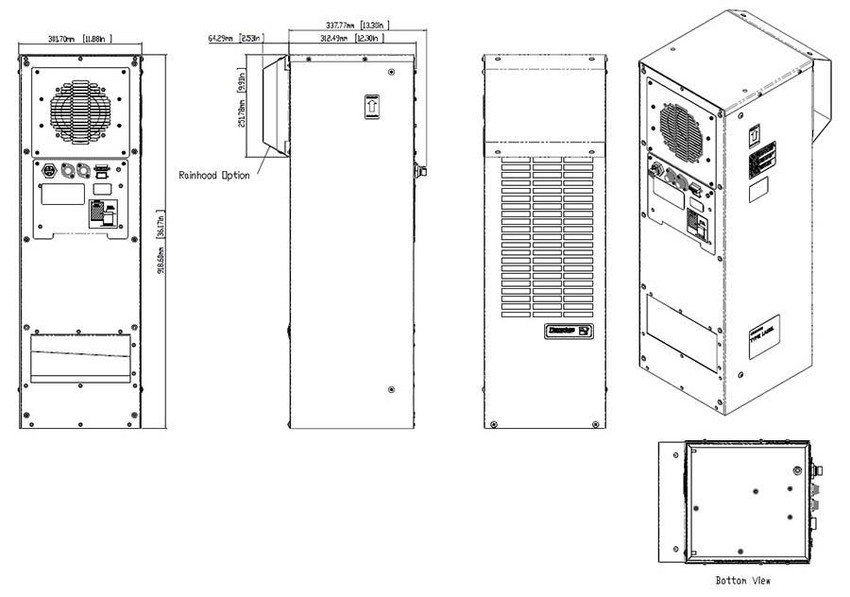

- Pfannenberg DTS 31x5 Air Conditioner Unit Dimensional Drawing
- Pfannenberg 3145/65/85‚ 115V / 230V / 400V / 460V Cooling Unit Standard Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Selecting the Optimal Thermal Management Technology: A Guide
- Pfannenberg Thermal Management Catalog
