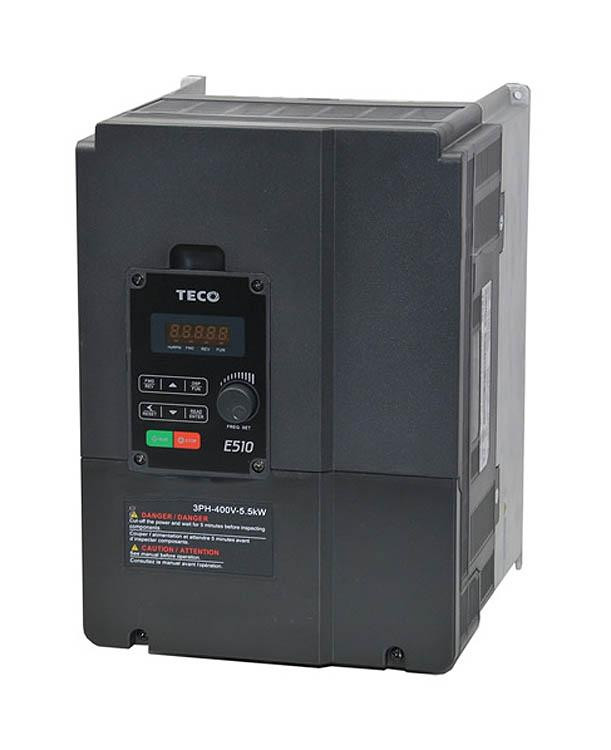

E510-410-H3-U

Our Teco E510 series is a V/Hz, sensorless vector drive that is compact and loaded with features!

Here are some of the highlights, take a look at the brochures for more information.

• The ability to control both permanent magnet and induction motors
• Faster processor for feedback response
• NEMA 1 conduit kits are included as standard for the smaller horsepower drives – these are an added option for most competitors
• Offers dedicated analog inputs 0-10VDC and 4-20mA inputs
• The control terminal strip for customer I/O is larger and does not require the use of special micro screwdrivers (a big benefit over competitors compact drives!)
• Directional forward or reverse jog function
• Dedicated safety input terminal
• Enhanced monitoring diagnostics
• PLC functionality

Product notes:

• In 2018 the E510 series replaced the N3 series
• If you have an E510 drive without the –U on the end, the only difference with the –U is that they have ‘Westinghouse’ on the keypad and frame, this change was made in 2017
• The E510 series is a great replacement for the Teco MA7200 series drives that were NEMA 4/12 (part numbers ended in a –N4)
• If you were using an MA7200 series that ended with –N1, we recommend looking at the Teco A510 series
• The E510 series drives are great to pair with our TECO washdown duty motors

The Teco E510 series is a great cross reference to these manufacturers drives:

• Mitsubishi D700
• Hitachi WJ200
• ABB ACS310
• Schneider Electric Altivar 312
• Yaskawa V1000
• Danfoss VLT FC280
• Toshiba VF-S15

You will find this series comparable to these drives that we also carry: AC Tech SMVector, Fuji Mini, Detla VFD-E, LS iG5, Weg CFW08 and Hitachi WJ200

Horsepower

• 10 HP

Rated Input Amps HD (CT)

• 23 Amps

Rated Input Voltage

• 380-480VAC, 3 Phase

AC Input Frequency

• 50/60Hz

Rated Output Current

• 0-480V, 3 phase
• 17.5 amps

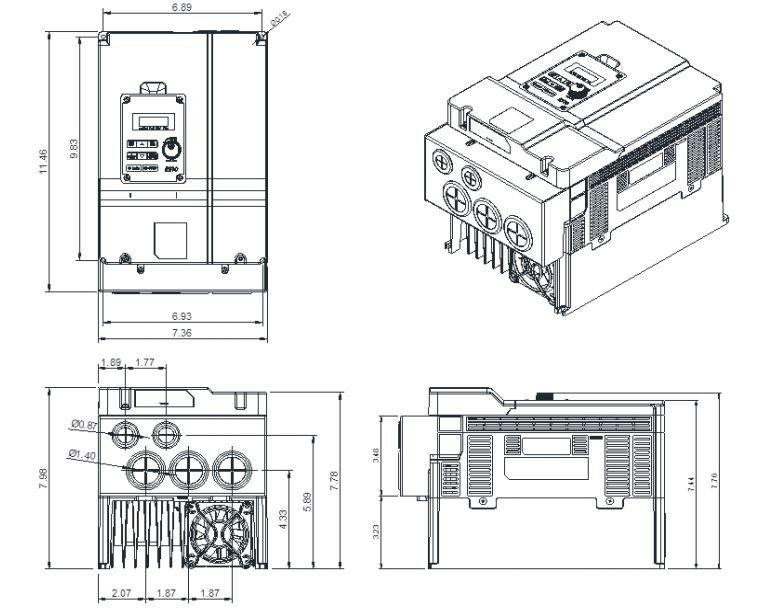

Dimensions

• Height: 10.24 in
• Width: 7.36 in
• Depth: 7.98 in

Housing

• IP20
• NEMA 1

Technical Information:

• TECO Westinghouse E510-410-H3-U Datasheet
• TECO Westinghouse E510 Series Compact Drive Flyer
• TECO Westinghouse E510 Series Technical Specification Brief
• TECO Westinghouse E510 Series Compact Drive Brochure
• TECO Westinghouse E510 NEMA 4/12 Series Compact Drive Brochure
• TECO Westinghouse E510 Series Instruction Manual
• TECO Westinghouse E510 Series Start-Up and Installation Manual
• TECO Westinghouse E510 Series Quick Start Guide

Options Technical Information:

• Teco Westinghouse E510 Series PLC Addendum
• Teco Westinghouse E510 Series Communication Addendum
• Teco Westinghouse 510 Series Braking Unit User Manual
• Teco Westinghouse 510 Series Copy Module Instruction Manual
• TECO Westinghouse Compact E510 General PID Setup Guide
