657-010-55

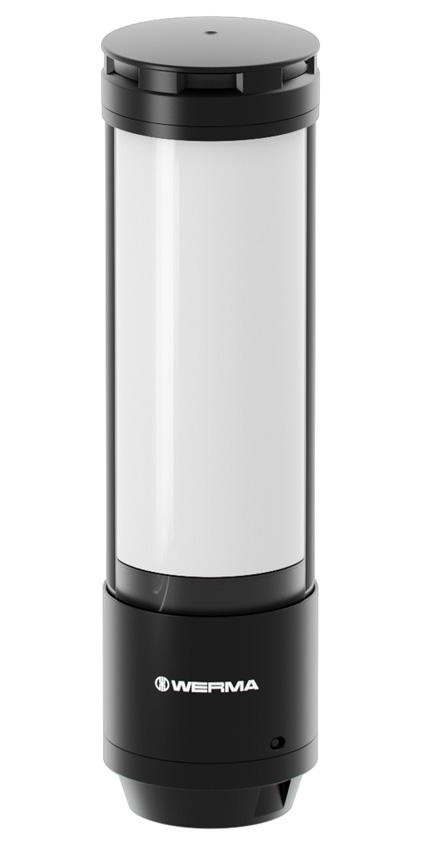

Werma's eSIGN is loaded with powerful features:

• Different lighting options and tones for any number of applications!
• • Classic signal tower light indication by individual tiers
  • Autoscale mode for full-surface signalling
  • Variable filling level indication from 0 to 100%
  • Each eSIGN segment (available in 9 or 15 per tower) can be set and activated individually
• UL Type 4X
• Optional siren/buzzer with up to 10 different tones, can be combined with light effects
• IO-Link model available
• M12 connection

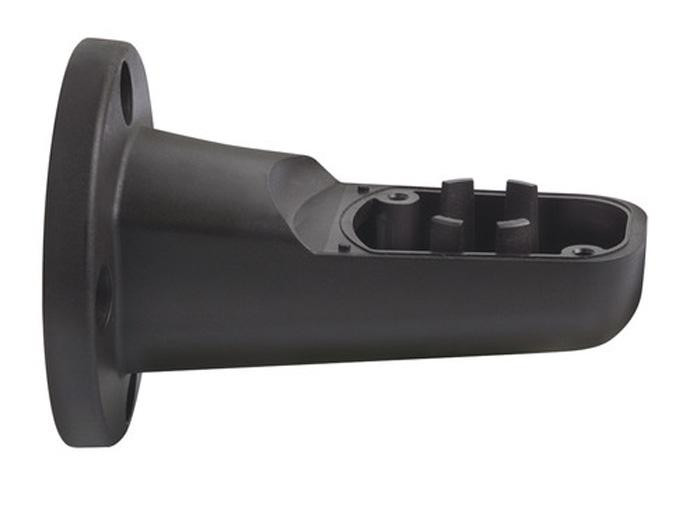

• Can be base mounted, wall mounted or pole mounted (view accessories)

Features Include:

• Full-surface signalling with clear and unmistakable light effects for maximum visibility.
• Versatile customization options with different modes, light effects and tones.
• UL Type 4X ensures resistance to UV radiation and environmental influences.
• Classic signal tower indication in individual tiers.
• Autoscale mode for full-surface signalling and optimum visibility.
• Variable filling level indication from 0 to 100 %.
• Individual triggering to suit your requirements.
• Height: 271 mm
• Diameter: 72 mm
• Materials: PC
• Dome color: Clear
• Protection category: IP66, IP69K
• Connection: M12 plug 4-pole
• Type of fixing: Base mounting, Tube mounting
• Operating voltage tolerance: +/- 20%
• Rated operational voltage: 24 VDC
• Rated operational current: 335 mA
• Rated inrush current: 800 mA
• Light source LED
• Light color MC >1.000.000 colors
• Optical signal image: Blink Double flash Flash Permanent Revolving Triple flash

Technical Information:

• Werma 657.010.55 eSIGN IO-Link 9 Segments Datasheet
• Werma eSIGN IO-Link Light Tower Brochure
• Werma eSIGN IO-Link Light Tower Handbook
• Werma eSIGN IO-Link Light Tower Operating Instructions
