6018169054
Alt: 601.8169.054, SLK-F-UC-22-R1-A0-L0-0
$412.61

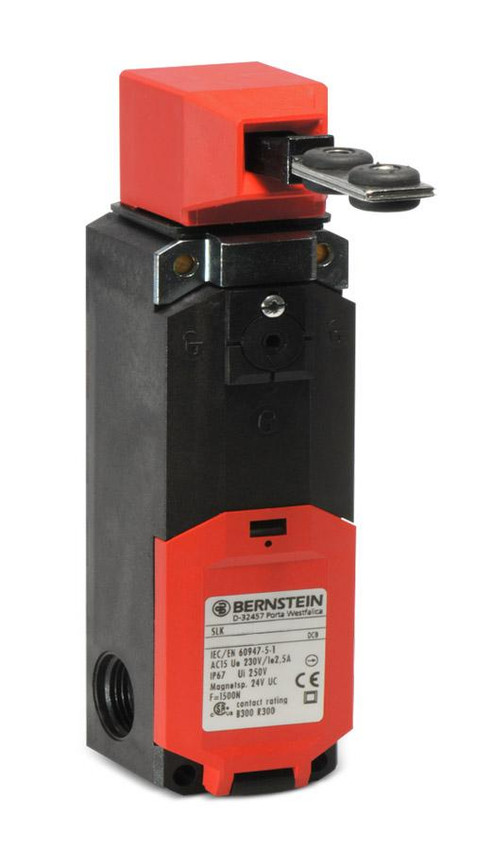

Safety Switch, Solenoid Locking, Plastic Body
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rotary actuating head (4x 90°) as well as horizontal and vertical actuation ensure complete flexibility in use
- Compact design with short overall size of only 170 mm
- Innovative installation with spring-loaded terminals
- Interlock facility is integrated in the switch enclosure
- Locking principle: Spring force (closed-circuit current), Magnetic force (working current)
- Anti-tamper facility due to triple coding
- Protection class IP 67
- Two independent safety circuits ensure reliable integration: With two contacts, circuit 1 monitors the actuator, With two contacts, circuit 2 monitors the interlock
- Two different operating voltages for universal integration: 24 V AC / DC or 110 V / 230 V AC
- Function conforming to GS ET 19, EN 60 204-1, EN 60 947-1 and EN 60 947-5-1
- Cable entry 3 x M20 x 1.5
