Exergen
T/C.XMTR-J-1200F

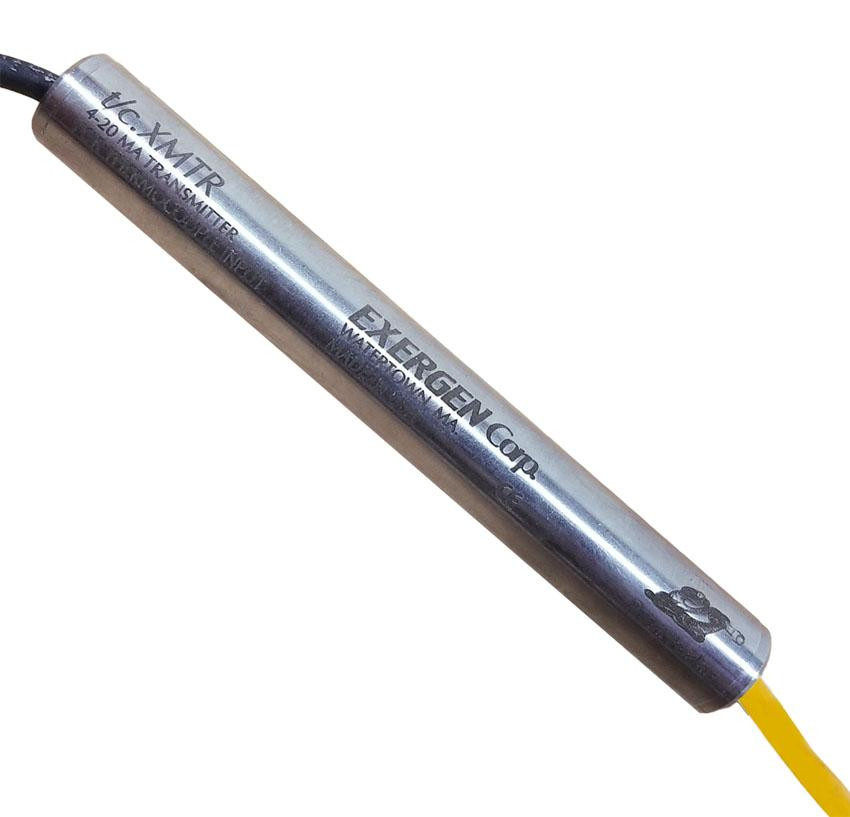

4-20 mA Inline Transmitter, 32°-1000°F, Type J Thermocouple, Shielded Cable
$904.40
T/C.XMTR-J-150F/65C
Alt: 124910
$904.40
4-20 mA Inline Transmitter, 32°-150°F, Type J Thermocouple, Shielded Cable
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Temperature at 4 mA: 32°F (0°C)
- Accuracy: ±0.1% F.S. conversion of thermocouple mV input to mA output
- Speed of Response: 160 msec (10Hz bandwidth)
- Operating Range: 32 to 158°F (0 to 70°C)
- Temperature Drift: <0.02% F.S. per °C
- Output Noise: <1nv rms (100Hz bandwidth)
- Input Break Indication: Upscale: goes to >20 mA
- Power Supply @ Load: 12 VDC minimum @10; to 22 VDC minimum @1K
- Storage Temperature: -85 to 257°F (-65 to 125°C)
- Weight: 2.4 oz (68 g) with cables
- Housing: Stainless steel, hermetically sealed, meets or exceeds all applicable NEMA ratings, housing electrically isolated from signal.
