Available from manufacturer (as of 11/15/2026)
00236XT3E145TC
Alt: 14296383
$930.05

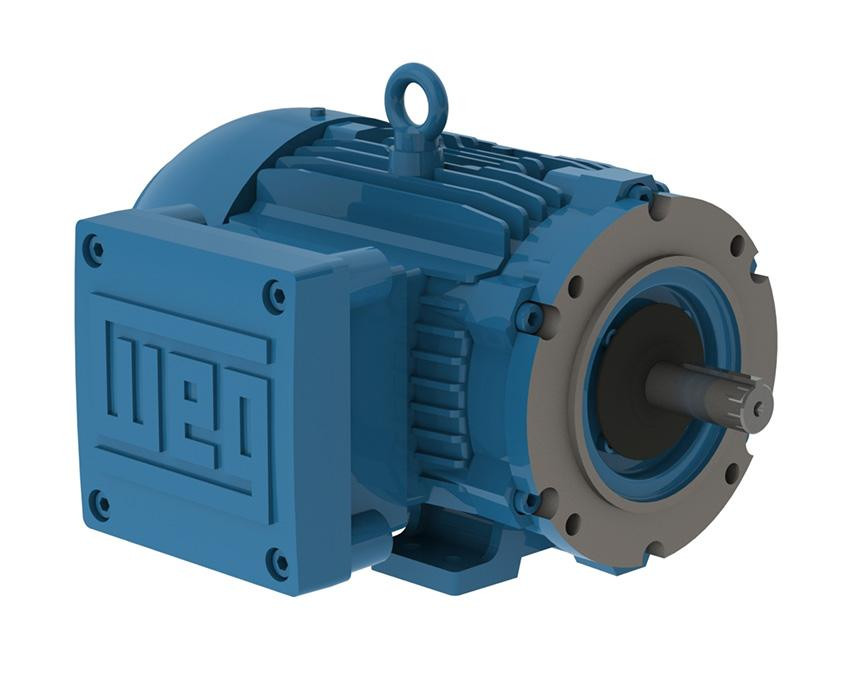

Motor, Explosion Proof, 2hp, 3600rpm, 230/460//380V, 60//50Hz, 143/5TC Frame, Three Phase, NEMA Premium Efficiency, IC411 - TEFC, Footed, C-Flange, F-1 Mounting, Left Position Terminal Box, IP55
- Weight:
- 90.00 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG W21 Explosion Proof motor line is designed to operate safely in hazardous locations with explosive gas or dust atmospheres, such as refineries, chemical plants, and grain handling facilities. The flame-retention design uses precisely machined joints and high-strength fasteners, and the motors are certified for variable frequency drive service.
Key Features
- Explosion proof construction with flame-retention joints
- Cast iron frame in a totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency
- Certified for VFD service
- Three phase operation built to NEMA MG-1
Certifications
- UL listed
- CSA certified
- Class I, Division 1, Groups C and D
- Class II, Division 1, Groups F and G
- T3C temperature code
Features Include:
- Standard: NEMA MG-1
- Frequency: 60/50 Hz
- Voltage: 230/460/380 V
- Rated current: 5.38/2.69 A
- No load current: 2.40/1.20 A
- Rated torque: 3.01 ft.lb
- Starting Method: Direct On Line
- Number of poles: 2
- Degree of Protection: IP55
- Synchronous speed: 3600 rpm
- Output rating: 2 HP (1.5 kW)
- Mounting: Foot-mounted
- Flange: C
- Mounting: F-1
- Terminal box¹: Left position
- Rotation: Both (CW and CCW)
- Enclosure: IC411 - TEFC
- Frame: 143/5TC
Technical Information:
