IR08.P03S-F46.NO1Z.7SL
Baumer

IR08.P03S-F46.NO1Z.7SL

Alt: 11148760

$169.20

Inductive Proximity Sensor, Miniature, M8, Flush, 6-36VDC, 3mm Range Sn, NPN, NO, Enhanced Distance (GammaProx), M8 Connector, 8 x 46mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

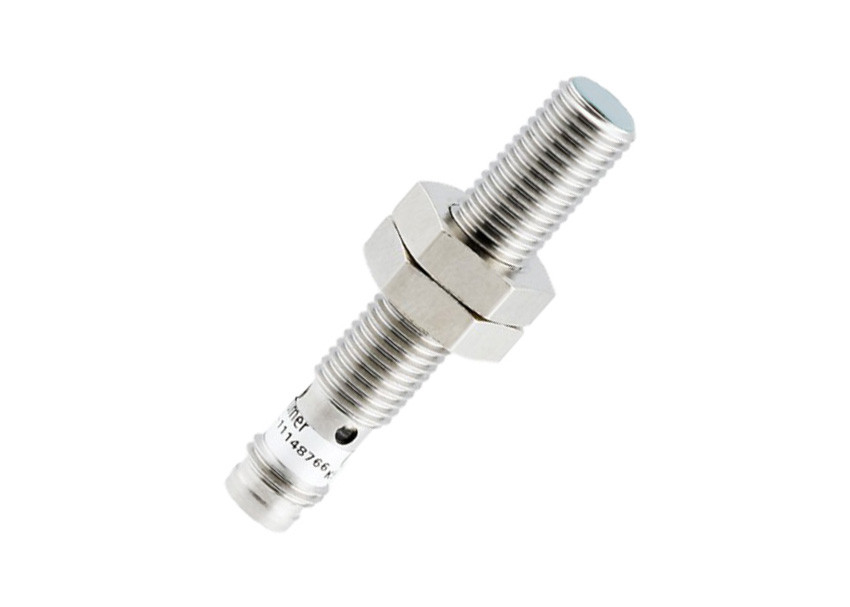

Baumer IR08 miniature inductive sensor with triple sensing distance
Description

The Baumer IR08 miniature inductive proximity switch offers triple sensing distance (GammaProx) in a compact cylindrical housing.

Key Features

  • Miniature housing
  • Triple sensing distance (GammaProx)
  • Nominal sensing distance 3 mm or 6 mm depending on model
  • Flush or non-flush mounting depending on model
  • NPN or PNP switching output, NC or NO depending on model
  • Supply voltage 6-36 VDC
  • Connection via 2 m cable or M8 connector depending on model
  • Cylindrical threaded housing in stainless steel
  • Operating temperature -25 to +75 °C
  • Protection class IP67
