IR12.D06S-Q40.UA1Z.7BCV
Baumer

IR12.D06S-Q40.UA1Z.7BCV

Alt: 11130476

$382.60

Inductive Distance Sensor, M12, Quasi-Flush, 12-36VDC, 0-6mm Measuring Distance Sd, Analog 0-10VDC Output, 2m Cable, 12 x 40mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

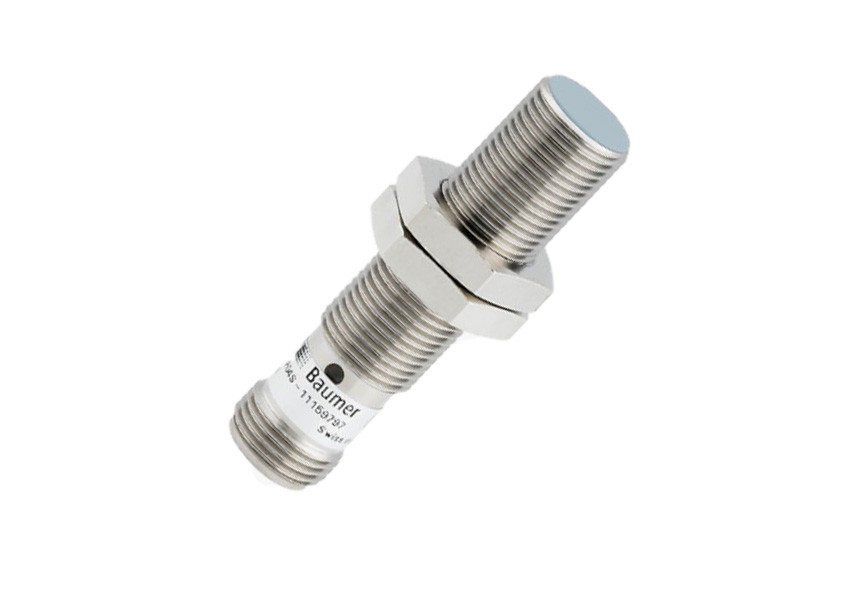

Baumer IR12 inductive distance sensor with analog output
Description

The Baumer IR12 inductive distance sensor measures the distance to a metal target without contact and provides an analog output.

Key Features

  • Non-contact distance measurement of metal targets
  • Measuring distance 0-4 mm, 0-6 mm or 2.75-3 mm depending on model
  • Flush or quasi-flush mounting depending on model
  • Analog 0-10 VDC output depending on model
  • Analog 4-20 mA output depending on model
  • Supply voltage 12-30 VDC, 12-36 VDC, 8-30 VDC or 8-36 VDC depending on model
  • Connection via 2 m cable or M12 connector depending on model
  • Cylindrical threaded housing in nickel plated brass; cylindrical threaded housing in nickel plated steel depending on model
  • Operating temperature -10 to +60 °C or -25 to +75 °C depending on model
  • Protection class IP67
