Baumer
IR08.D03S-Q22.UA1Z.7SCV
Inductive Distance Sensor, M8, Quasi-Flush, 12-36VDC, 0-3mm Measuring Distance Sd, Analog 0-10VDC Output, 2m Cable, 8 x 22mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$378.89
IR08.D03S-Q40.UA1Z.7SCV
Alt: 11130473
$339.49
Inductive Distance Sensor, M8, Quasi-Flush, 12-36VDC, 0-3mm Measuring Distance Sd, Analog 0-10VDC Output, 2m Cable, 8 x 40mm Cylindrical Threaded Stainless Steel Housing, -10 to +70°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

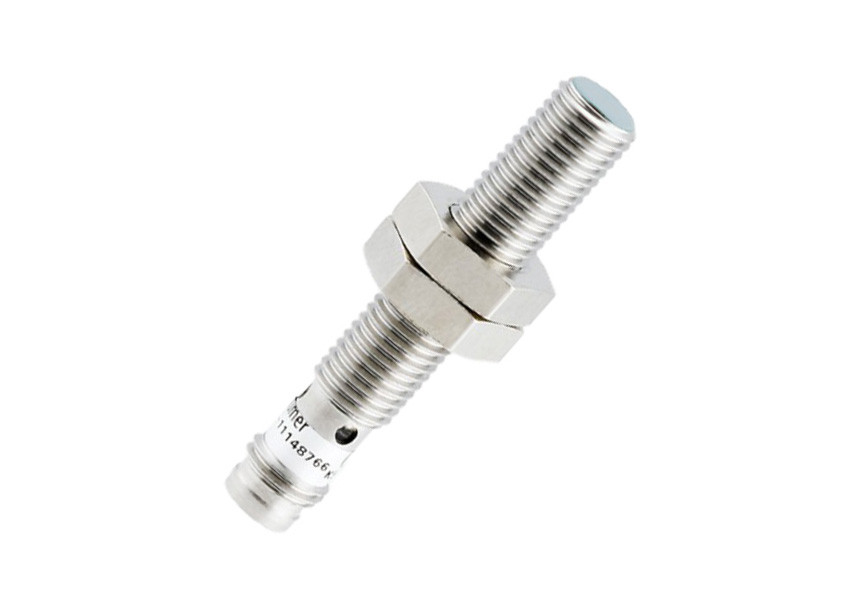

The Baumer IR08 inductive distance sensor measures the distance to a metal target without contact and provides an analog output.
Key Features
- Non-contact distance measurement of metal targets
- Measuring distance 0-2 mm or 0-3 mm depending on model
- Flush or quasi-flush mounting depending on model
- Analog 0-10 VDC output depending on model
- Analog 0-10 mA output depending on model
- Supply voltage 12-30 VDC, 12-36 VDC or 6-36 VDC depending on model
- Connection via 2 m cable or M8 connector depending on model
- Cylindrical threaded housing in stainless steel
- Operating temperature -10 to +70 °C or -25 to +75 °C depending on model
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IR08.D03S-Q30.UA1Z.7SCV
Inductive Distance Sensor, M8, Quasi-Flush, 12-36VDC, 0-3mm Measuring Distance Sd, Analog 0-10VDC Output, 2m Cable, 8 x 30mm Cylindrical Threaded Stainless Steel Housing, -10 to +70°C, IP67
$354.49
Baumer
IR06.D03L-Q40.UA1Z.7SCV
Inductive Distance Sensor, Ø6.5mm, Quasi-Flush, 12-30VDC, 0-3mm Measuring Distance Sd, Analog 0-10VDC Output, Linearized, 2m Cable, 6.5 x 40mm Cylindrical Smooth Stainless Steel Housing, -25 to +75°C, IP67
$380.80
Baumer
IR06.D03S-Q30.UA1Z.7SCV
Inductive Distance Sensor, Ø6.5mm, Quasi-Flush, 12-36VDC, 0-3mm Measuring Distance Sd, Analog 0-10VDC Output, 2m Cable, 6.5 x 30mm Cylindrical Smooth Stainless Steel Housing, -10 to +70°C, IP67
$339.49
Baumer
IR08.D03S-Q46.UA1Z.7SL
Inductive Distance Sensor, M8, Quasi-Flush, 12-36VDC, 0-3mm Measuring Distance Sd, Analog 0-10VDC Output, M8 Connector, 8 x 46mm Cylindrical Threaded Stainless Steel Housing, -10 to +70°C, IP67
$339.49
