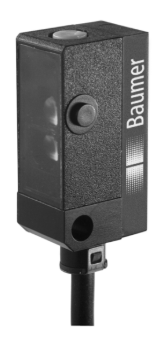

OEDK 10P5105
Baumer

OEDK 10P5105

Alt: 10165140

$600.89

Thru-Beam Sensor, Receiver, 11-30VDC, 8m Actual Range Sb, 270° Potentiometer, PNP, Light/Dark Operate, 2m 4-Pin Cable, 10.4 x 27 x 14mm (WxHxD), Plastic (ASA), -10 to +50°C, IP65, Emitter Sold Separately

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Baumer OEDK thru-beam receivers for beam-break detection with a matching emitter
Description

The Baumer OEDK thru-beam sensor receivers detect objects that interrupt the light beam sent from a separate matching emitter.

Key Features

  • Actual range Sb up to 8m
  • 11-30VDC and 10-30VDC supply voltage depending on model
  • PNP and NPN output versions
  • Light/dark operate output function
  • Adjustment by 270° potentiometer
  • 2m 4-Pin Cable, M12 4-Pin Connector and M8 4-Pin Connector connection versions
  • Plastic (ASA) and Plastic (ASA/MABS) housing depending on model
  • IP65 and IP67 protection depending on model

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

OEDK 10P5105/S35A

Photoelectric Thru-Beam Laser Sensor, Receiver, 11-30VDC, 100mA, 8-10m Range, 270° Potentiometer Sensitivity Adjustment, Light/Dark Operate, PNP, M8 4-pin Connector, IP67, Rectangular 27 x 10.4 x 14mm (HWD)

$586.80

Baumer

OEDK 10N5105

Thru-Beam Sensor, Receiver, 11-30VDC, 8m Actual Range Sb, 270° Potentiometer, NPN, Light/Dark Operate, 2m 4-Pin Cable, 10.4 x 27 x 14mm (WxHxD), Plastic (ASA), -10 to +50°C, IP65, Emitter Sold Separately

$600.89

Baumer

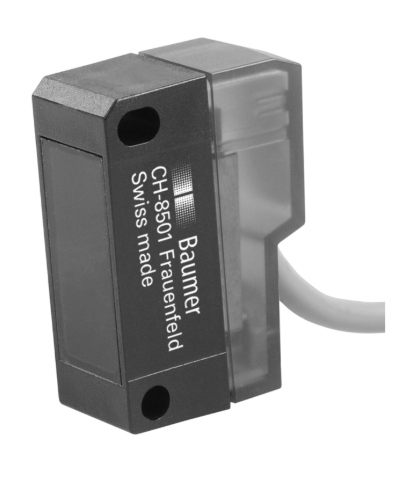

OEDK 14P5101

Thru-Beam Sensor, Receiver, 10-30VDC, 8m Actual Range Sb, No Adjustment, PNP, Light/Dark Operate, 2m 4-Pin Cable, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67, Emitter Sold Separately

$550.60

Baumer

OEDK 14P5101/S35A

Thru-Beam Sensor, Receiver, 10-30VDC, 8m Actual Range Sb, No Adjustment, PNP, Light/Dark Operate, M8 4-Pin Connector, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67, Emitter Sold Separately

$528.49
Add Selection to Cart
!
✓
