Baumer
OEDK 14P5101
Thru-Beam Sensor, Receiver, 10-30VDC, 8m Actual Range Sb, No Adjustment, PNP, Light/Dark Operate, 2m 4-Pin Cable, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67, Emitter Sold Separately
$550.60
OEDK 14P5101/S35A
Alt: 11001236
$528.49
Thru-Beam Sensor, Receiver, 10-30VDC, 8m Actual Range Sb, No Adjustment, PNP, Light/Dark Operate, M8 4-Pin Connector, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67, Emitter Sold Separately
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

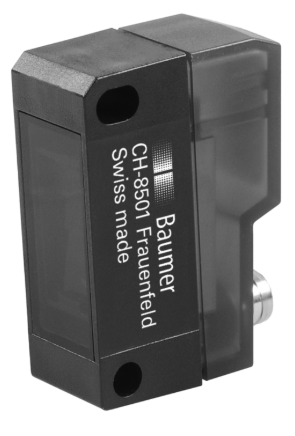

The Baumer OEDK thru-beam sensor receivers detect objects that interrupt the light beam sent from a separate matching emitter.
Key Features
- Actual range Sb up to 8m
- 11-30VDC and 10-30VDC supply voltage depending on model
- PNP and NPN output versions
- Light/dark operate output function
- Adjustment by 270° potentiometer
- 2m 4-Pin Cable, M12 4-Pin Connector and M8 4-Pin Connector connection versions
- Plastic (ASA) and Plastic (ASA/MABS) housing depending on model
- IP65 and IP67 protection depending on model
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
OEDK 14P5101/S14
Thru-Beam Sensor, Receiver, 10-30VDC, 8m Actual Range Sb, No Adjustment, PNP, Light/Dark Operate, M12 4-Pin Connector, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67, Emitter Sold Separately
$528.49
$586.80
Baumer
OEDK 10P5105/S35A
Photoelectric Thru-Beam Laser Sensor, Receiver, 11-30VDC, 100mA, 8-10m Range, 270° Potentiometer Sensitivity Adjustment, Light/Dark Operate, PNP, M8 4-pin Connector, IP67, Rectangular 27 x 10.4 x 14mm (HWD)
$586.80
Baumer
FPDK 14P5101/S35A
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 7m Actual Range Sb, 7.2m Nominal Range Sn, PNP, Light/Dark Operate, M8 4-Pin Connector, 43 x 14.8 x 31mm (HWD), Plastic (ASA, MABS) Housing, PMMA Optics, -25° to +65°C, IP67
$235.09
