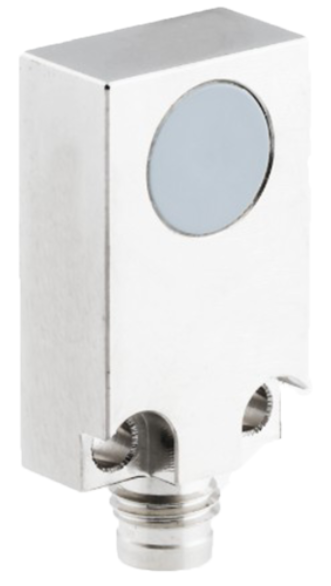

Baumer
IWFM 20I9501/S35
Inductive Distance Sensor, Flush, 15-30VDC, Current Output, 4-20mA, M8 Connector, 20 x 35mm, Brass Nickel Plated Housing, 0 to +60°C, IP67
$452.00

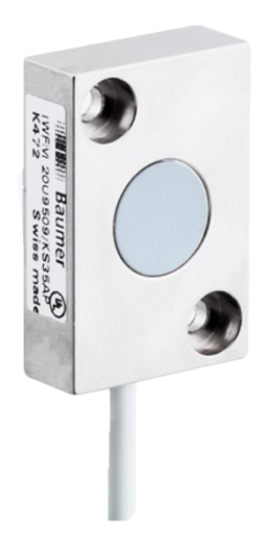

IWFM 20U9509/KS35AP
Alt: 10155925
$665.20
Inductive Distance Sensor, Flush, 15-30VDC, 0-2mm Measuring Distance Sd, Analog 0-10VDC Output, M8 Flylead Connector, Rectangular Nickel Plated Brass Housing, -10 to +70°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer IWFM inductive distance sensor measures the distance to a metal target without contact and provides an analog output.
Key Features
- Non-contact distance measurement of metal targets
- Measuring distance 0-1 mm, 0-2 mm, 0-4 mm, 1-2 mm, 2-3 mm or 2-5 mm depending on model
- Flush or quasi-flush mounting depending on model
- Analog 0-10 VDC output depending on model
- Analog 1-9 VDC output depending on model
- Analog 4-20 mA output depending on model
- Supply voltage 15-30 VDC
- Connection via 2 m cable, M5 connector, M8 connector or M8 flylead connector depending on model
- Rectangular housing in nickel plated brass
- Operating temperature -10 to +70 °C, 0 to +60 °C or 10 to +60 °C depending on model
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IWFM 20U9501/S35
Inductive Distance Sensor, Flush, 15-30VDC, 2-5mm Measuring Distance Sd, Analog 1-9VDC Output, M8 Connector, Rectangular Nickel Plated Brass Housing, 0 to +60°C, IP67
$452.00
Baumer
IWFM 12L9505/S35A
Inductive Distance Sensor, Flush, 15-30VDC, 1-4mm Measuring Distance Sd, Voltage - / Current Output, 0-10V / 4-20mA, M8 Connector, 12 x 60mm, Brass Nickel Plated Housing, -10 to +70°C, IP67
$748.40
Baumer
IWFM 18L9504/S35A
Inductive Distance Sensor, Flush, 15-30VDC, 0-4mm Measuring Distance Sd, Analog 0-10VDC Output, M8 Connector, Rectangular Nickel Plated Brass Housing, -10 to +70°C, IP67
$647.09
Baumer
IWFM 12U9501/O1
Inductive Distance Sensor, Flush, 15-30VDC, 1-2mm Measuring Distance Sd, Analog 1-9VDC Output, 2m Cable, Rectangular Nickel Plated Brass Housing, 0 to +60°C, IP67
$423.89
