Baumer
IWFM 18L9504/S35A
Inductive Distance Sensor, Flush, 15-30VDC, 0-4mm Measuring Distance Sd, Analog 0-10VDC Output, M8 Connector, Rectangular Nickel Plated Brass Housing, -10 to +70°C, IP67
$647.09
IWFM 18L9505/S35A
Alt: 10147285
$748.40
Inductive Distance Sensor, Flush, 15-30VDC, 0-4mm Measuring Distance Sd, Analog 0-10VDC Output, M8 Connector, Rectangular Nickel Plated Brass Housing, -10 to +70°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

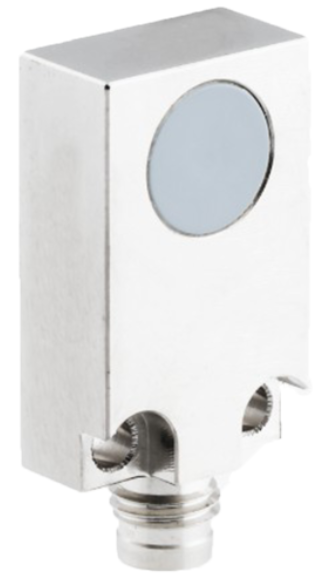

The Baumer IWFM inductive distance sensor measures the distance to a metal target without contact and provides an analog output.
Key Features
- Non-contact distance measurement of metal targets
- Measuring distance 0-1 mm, 0-2 mm, 0-4 mm, 1-2 mm, 2-3 mm or 2-5 mm depending on model
- Flush or quasi-flush mounting depending on model
- Analog 0-10 VDC output depending on model
- Analog 1-9 VDC output depending on model
- Analog 4-20 mA output depending on model
- Supply voltage 15-30 VDC
- Connection via 2 m cable, M5 connector, M8 connector or M8 flylead connector depending on model
- Rectangular housing in nickel plated brass
- Operating temperature -10 to +70 °C, 0 to +60 °C or 10 to +60 °C depending on model
- Protection class IP67
