NAB-1040G

NAB-1040G

Alt: NAB Series

$6.10

Wire Duct, Open Slot, Grey, 1 x 4” (W x H), Minimum Order of 48' Per Carton (8 Lengths), Price per Foot

Weight:
0.50 LBS
Minimum Purchase:
48 units
Adding to cart… The item has been added
Please note that wire duct does not qualify for free shipping and is only sold in carton quantities. Thank you!
Description

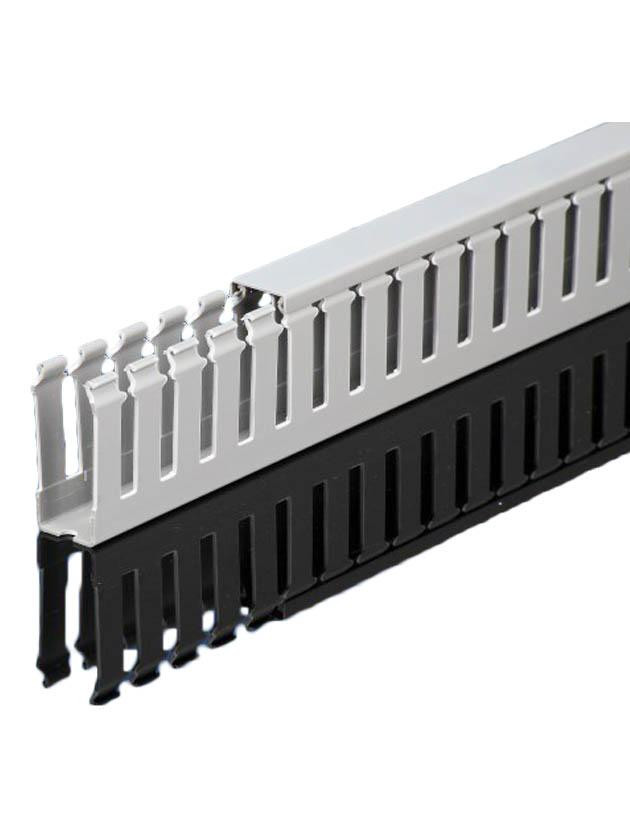

Introducing IBOCO’s new Hager brand of North American base (NAB) standard finger PVC wiring duct!

This series is 2-meters in length and includes the lid with a protective film that is easily removable after lid installation. The lid is a flush cover that snaps securely over the fingers, ensuring a tight fit with minimal effort.

The individual fingers with 2 predetermined break lines insure a finger breakout on the upper score line and easy sidewall removal with hand tool on the lower scoreline.

Please note we only sell carton quantities of wiring duct.

  • NAB-XXXXG - Grey standard finger wiring duct
  • NAB-XXXXW - White standard finger wiring duct

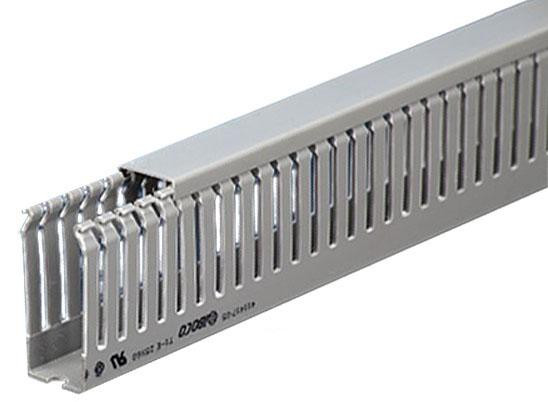

  • NAB-XXXXHG - Grey narrow finger/high density wiring duct
  • NAB-XXXXWHD - White narrow finger/high density wiring duct

Features Include:

  • Normal Size (W x H): 1" x 4"
  • Standard Lengths: 8
  • Carton Qty. Feet: 48

Dimensions (actual):

  • Width: 1.00" (25 mm)
  • Height: 3.94" (100 mm)
  • E (the distance between fingers): 0.31"
  • F (the width of individual fingers): 0.47"

The Hager Brand wire duct reflects the mounting hole configuration of all "North American" branded wire duct. Immediate mounting to your back panel or enclosure specified mounting holes.

  • Hager Brand lids include a protective, removable film, that can be easily removed after installation, eliminating unwanted scratches or smudges.
  • Flexible, double score-line for fast and easy modification. No cutter for firstshoreline. Flush/Burr free break. Second scoreline easily removed with the SX-15 hand duct cutter.
  • Fingers insure tight cover fit in Vertical positions.
  • Heavy-duty shipping carton insures "out of box" wire duct, and inclusive cover, insuring complete product integrity, ready to mount. No damages.
