8803006430

8803006430

Alt: RHT-WM-485-LCD, This Product is the Recommended Replacement for 8804000101 or 8804000000

$197.00

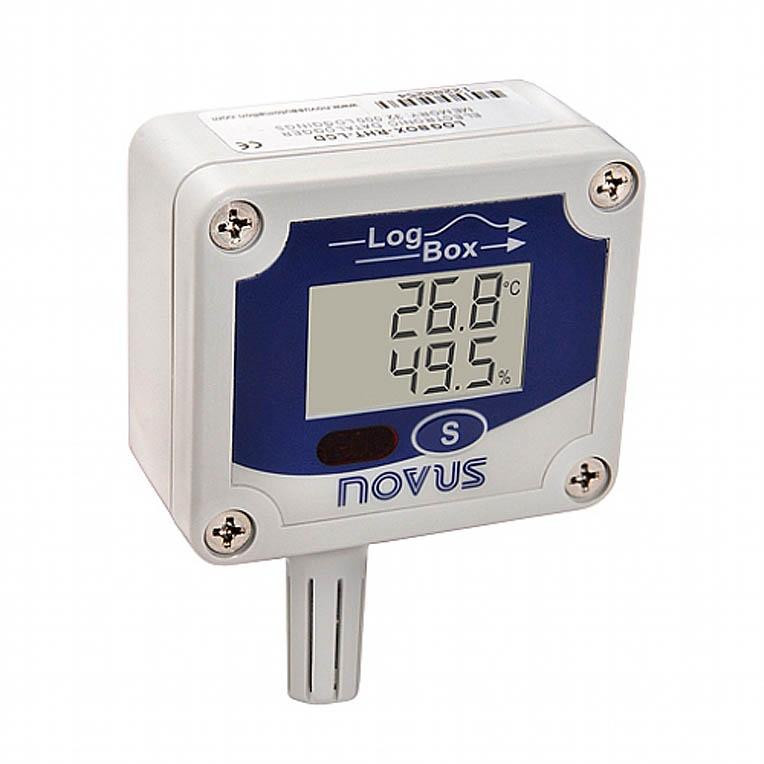

Temperature/Humidity Transmitter, Wireless, RS485 Out, Wall Mount

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Wall Mount Temp./Humid. Transmitter, Wireless, RS485 Out

Features Include:

Sensor Measurement Range:

  • Temperature: -40 °C to 100 °C (DM models)/ -40 °C to 60 °C (WM models)
  • Relative Humidity: 0.0 to 100.0 %RH (non-condensing)
  • Dew point: -90.0 °C a 100,0 °C

Response Time:

  • Temperature: up to 5 sec @ 25 °C with slow moving air (1 m/s)
  • Relative Humidity: up to 4 sec @ 25 °C with slow moving air (1 m/s)

Measurement Accuracy:

  • Temperature: ±0.2 °C (0 °C to +60 °C)
  • Relative Humidity: ±1.8 % RH @ +23 °C (0 % RH to 90 % RH)
  • Samplings Interval: 3 seconds
  • Analog Outputs: Two 0-10 V or 4-20 mA outputs configurable by software or keyboard
  • Display: Wide backlight LCD with three variables of 4 ½ digits
  • Keys: 3 keys with tactile feedback for navigation and adjustment of parameters
  • Alarms: Two digital outputs and one embedded buzzer
  • Operating Temperature: -40 ° C to 60 ° C
  • Connections: Internal terminals through cable glands
  • Dimensions: 100.3 x 80.0 x 45.1 mm
  • Enclosure: ABS+PC

Protection Rating:

  • Temperature: ±0.2 °C (0 °C to +60 °C)
  • ±1.8 % RH @ +23 °C (0 % RH to 90 % RH)

Power Supply:

  • By USB: 4.75 Vdc to 5.25 Vdc
  • By Connectors: 12 VDC to 30 VDC; maximum consumption 70mA +/- 10% @ 24VDC

Protection Rating:

  • Sensor probe: IP30
  • Enclosure: IP65
  • Communication interfaces: USB type Micro-B 2.0 and RS485 (both in Modbus RTU)
  • Programming: NXperience software for Windows through USB
